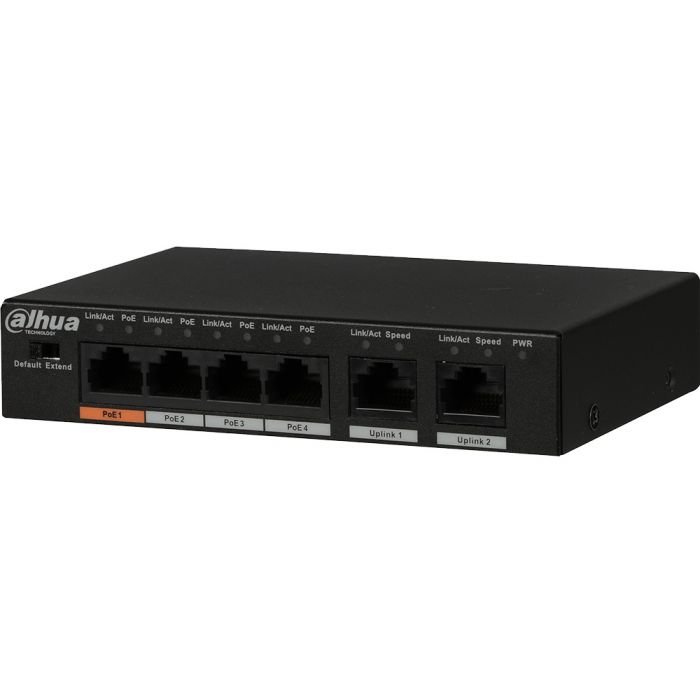

Dahua 4-Port Fast Ethernet PoE Switch

R919.00
SKU
DHPFS30064ET60
Layer 2 Commercial Switch Supports Hi-PoE (60 W) Metal Enclosure
Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website



Description

The Dahua 4-Port Fast Ethernet PoE Switch is specially designed for long-distance video transmission applications. The switch uses LD PoE technology to transmit power and data up to 250 m (820 ft). LD PoE extends transmission distances beyond the industry-standard 100 m, even with third-party PoE-compliant cameras. The switch provides four (4) 10/100 Mbps PoE ports and two (2) 100 Mbps uplink ports. The switch is also equipped with two transmission modes, Default and Extend, that are set by on-bard dip switches.



Features

  • Layer 2 Commercial Switch
  • Long-distance PoE (LD PoE) Transmits Power and Data 250 m (820 ft)
  • Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X
  • Conforms to IEEE802.3af and IEEE803.3at
  • Supports Hi-PoE (60 W)
  • MAC Auto-learning and Aging; 2K MAC Address Capacity
  • MDI/MDIX Self-adaptation
  • Metal Enclosure



Specifications

Ethernet Ports Two (2) 10/100 Mbps Uplink Ports
  Four (4) 10/100 Mbps PoE Ports)
PoE Features Protocol: IEEE802.3af, IEEE802.3at, Hi-PoE
  Consumption: Port 1: ≤ 60 W Ports 2-4: ≤ 30 W per Port
  Total PoE Budget: 60 W
Switching Capacity 1.8 Gbps
Packet Forwarding Rate 890 kpps
Packet Buffer Memory 768 Kb
MAC Table Size 2K
Flow Control Enabled (by default)
Power Requirements 48 VDC to 57 VDC
Working Temperature –10° C to 55° C (14° F to 131° F)
Application Humidity 10% to 90%
Dimensions (W x D x H) 130.0 mm x 85.0 mm x 26.0 mm
Weight 0.30 kg
Safety UL Certification Pending
Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 Subpart B Conforms to CE Standards
Lightning Protection Common Mode: 2KV
  Differential Mode: 0.5KV
