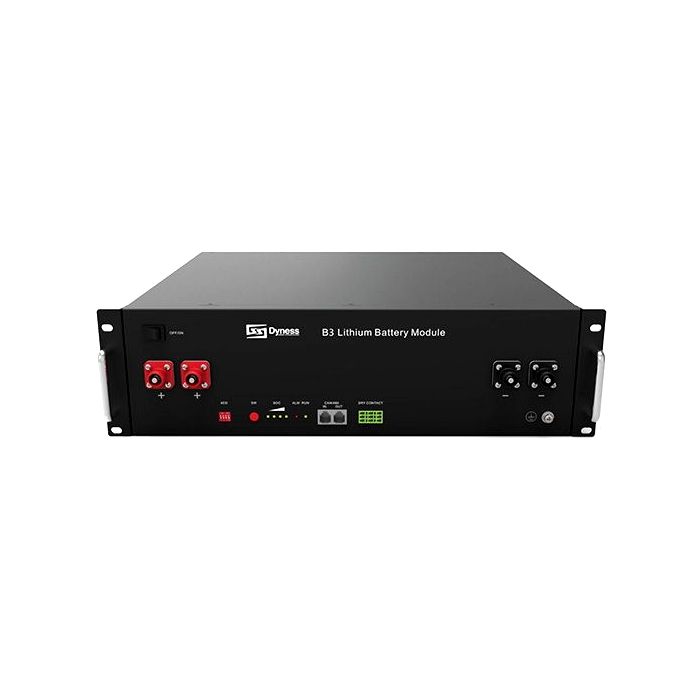

Dyness B3 3.6kWh Lithium-Ion Battery
R26,809.00
SKU
DB3
Please Note: Due to the daily fluctuation of the Rand/Dollar Exchange during the current worldwide pandemic, the price represented may NOT be an accurate purchasing price. Please ask us for a quote per item, when checking stock.
Description
The Dyness B3 3.6kWh Lithium-Ion Battery is widely used in energy storage and back-up power systems. The Dyness battery module is equipped with intelligent BMS system for each battery pack to manage modules effectively. Offers the best energy storage reliability with a longer life span.
Features
- Natural Cooling with optional heat/fan configuration
- Longer lifetime - 6000 cycles, 20 years of design life
- Large energy capacity
- Wide temperature range
- Modular design - Compact size and lightweight
Specifications
| Battery Type | LiFePO4 |
| Nominal Batter Energy | 3.6kWh |
| Nominal Capacity | 75Ah |
| Nominal Voltage | 48V |
| Maximum Continuous Discharge Current | 50A |
| Maximum Continuous Charge Current | 50A |
| Charging Cut-off Voltage | 54V |
| Discharging End-off Voltage | 40.5V |
| Recommended C Rate | 0.5C |
| Weight | 30kg |
| Dimension (W x D x H) | 400 x 360 x 133.5mm |
| Charging Temperature Range | 0~50°C |
| Discharging Temperature Range | -20 ~ 50°C |
| Calendar Life | 6000 Cycles |
| Protection Level | IP20 |
| Configuration | Up to 144kWh total energy, 4 modules parallel at most |
| Free Shipping | No |
|---|
