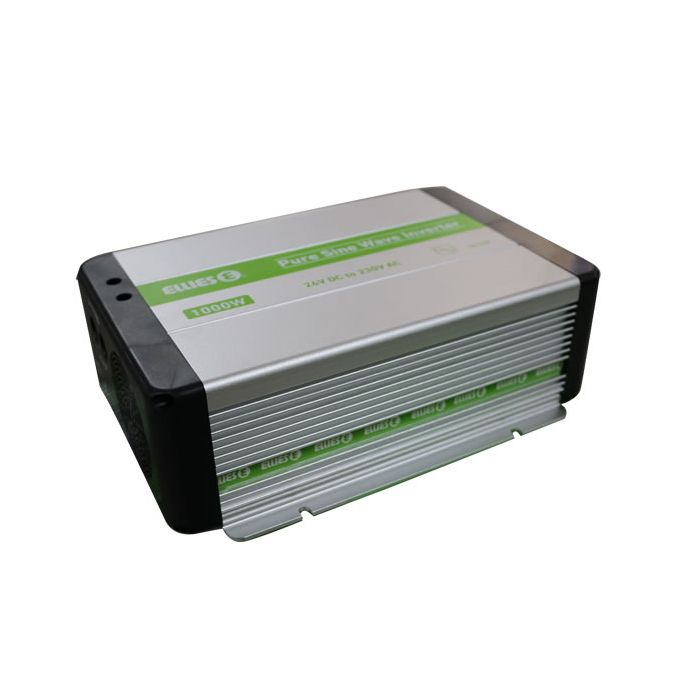

Ellies Pure Sine Wave Inverter - 1000W, 24VDC To 230VAC 50HZ
R2,699.00
SKU
FBI1000P
Reliable Proven Design
Continuous Operation
Remote ON/OFF Switch
Ideal for Off-grid Systems
Protection Methods in Place For Power, Temperature, Circuit Issues
Description
The Ellies Pure Sine Wave Inverter - 1000W, 24VDC To 230VAC 50HZ offers a reliable, proven design ideal for off-grid systems that converts DC power from a battery into 230VAC 'true pure sine wave' power. This system provides continuous operation and features a variety of protection methods in place to protect and restore the system in case of power, temperature or circuit issues. With a remote on/off system and a thermal fan for cooling, this system boasts efficiency, functionality and reliability.
Features
- Reliable Proven Design
- Continuous Operation
- High Power, Heavy Duty
- Remote ON/OFF Switch
- Ideal for Off-grid Systems
- Thermal Fan for Cooling
- Protection Methods in Place For Power, Temperature, Circuit Issues
- Wire Clamp Terminals
- LED Indicators Showing Power & Fault Status
- DC/AC Isolated
- Pre-slotted Mounting Plate
- Over-voltage Shut Down
- Low-voltage Alarm
- Low-voltage Shut Down
- Over-temperature Shut Down
- Output Short-circuit Protection
- DC Reverse Polarity Protection by Fuse
Specifications
| DC Voltage | 24V |
| Max. Amps | 44A |
| Voltage Range | 21.6VDC - 32VDC |
| No Load Current Draw | < 0.45A |
| Efficiency | ≥ 93% at rated load |
| DC Connector | Wire clamp terminals |
| DC 5 Wire Clamp Terminals | 16 -25mm2 cables |
| AC Voltage | 220V / 230V (4.3 Amps Max) |
| Continuous Power | 1000W |
| Surge Power | 2250W |
| Waveform | Pure sine wave |
| Frequency | 50Hz / 60Hz |
| AC Regulation | 3% |
| Dimensions | 350mm x 140mm x 265mm |
| Weight | 4kg |
| Free Shipping | No |
|---|
