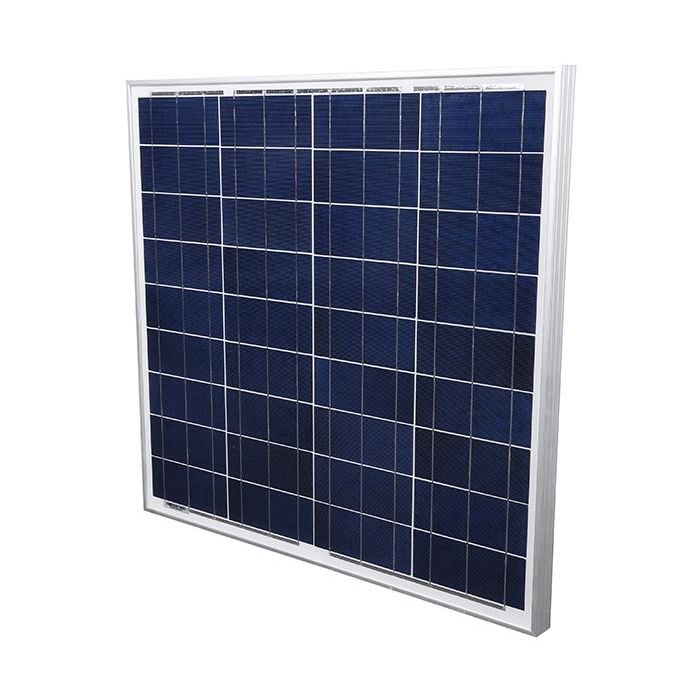

Ellies SW50 Solar Panel - 50W

R709.00
SKU
FSP50SW
Confirm Availability
In stock
Shipping restrictions apply.
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website



Description

The Ellies SW50 Solar Panel - 50W is ideal for small off-grid applications and is constructed from high-performance poly-crystalline. With a clear, anodized aluminium frame and a positive power tolerance, this panel is also PID resistant. Offering high reliability with the anti-reflective coated glass, this panel offers efficiency and functionality.



Features

  • Suitable for small off-grid applications
  • High-performance Poly-crystalline
  • High reliability with the anti-reflective coated glass
  • 36 cells @ 12VDC ( nominal volts)
  • Open circuit volts (VOC) 21.67VDC
  • Short circuit current (Isc) 3.03A
  • Frame is clear anodized aluminium
  • Positive power tolerance
  • 1000V DC
  • PID resistant



Specifications

Rated Power Pmax (Wp) 50
Open Circuit Volage Voc (V) 21.67
Short Circuit Current, Isc (A) 3.03
Voltage at Maximum Power, Vmp (V) 17.67
Current at Maximum Power, Imp (V) 2.85
Module E cieny (%) 13.82%
Module Dimension (mm) 559 x 659 x 34.5
Matrix 9 x 4
Solar Cell Type Multi Crystalline Silicon
Front Cover 3.2mm Thick; Low Iron Tempered Glass
Frame Material Silver Andized Aluminium Alloy
Junction Box 3 Rail
Dimensions 668mm x 635mm x 35mm
Weight 2.82kg
