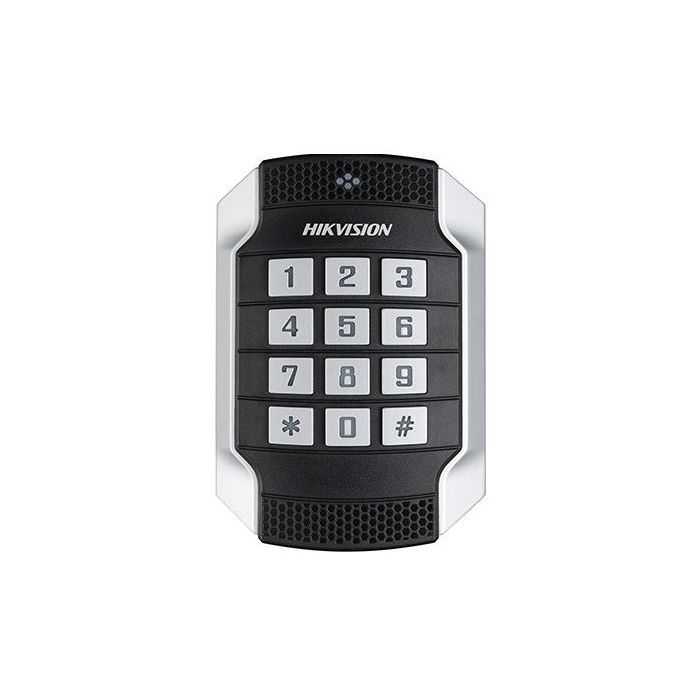

Hikvision DS-K1104 Vandal-Resistant Card Reader And Keypad
R1,369.00
SKU
DSK1104MK
LED Reader Status Indicator
Tamper-Resistant Alarm
Supports Mifare Cards
RS-485 and Wiegand (W26/W34) Protocols
Description
Hikvision’s DS-K1104 Series vandal-resistant card readers with dip switch are rated IK10. They support RS-485 and Wiegand (W26/W34) protocols.
Features
- LED Reader Status Indicator
- Tamper-Resistant Alarm
- Supports Mifare Cards
- Keypad (Option)
- RS-485 and Wiegand (W26/W34) Protocols
Specifications
| Brand | Hikvision |
| Working Current | ≤500 mA |
| Processor | 32-bit |
| Reading Frequency | 13.56 MHz |
| Reading Range | ≤1.97" (≤50 mm) |
| ID Settings | DIP switch |
| Audio Alert | Beeper |
| Power Consumption | ≤2 W |
| Keypad | Keypad w/12 keys (0 to 9, *, #) |
| Certifications | FCC, CE, UL |
| LED Indicator | Power indicator; status LED indicator |
| Working Temperature | -20° to +65° C |
| Working Humidity | 10% to 90% (non-condensing) |
| Protection Level | IP 65 |
| Dimensions | 118 × 76 × 23 mm |
| Installation Method | Applied to 86 and 120 gang box |
| Free Shipping | No |
|---|
