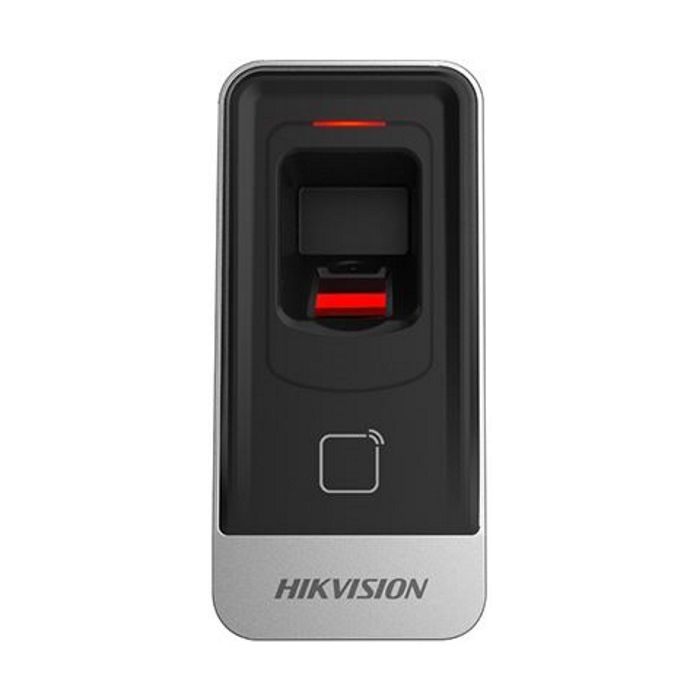

Hikvision DS-K1201 Series Fingerprint And Card Reader - Slave Reader Not Included

Manufacturer's Website

Description

The Hikvision DS-K1201 Series Fingerprint And Card Reader, designed with a32-bitt high-speed processor, contains the optical fingerprint recognition module. It communicates with the access controller via the RS-485 protocol. And a built-in tamper-proof module helps to protect the card reader from malicious damage. The protective level is IP65, which is suited for outdoor installation.

Please Note: This product does NOT come with a slave reader and would need to be purchased as an extra.

Features

• Supports RS485 communication with 19200 bps-N-8-1 transmission rate. There are CRC tests for the protocol
• Supports EM card reading (DS-K1201EF)
• Supports Mifare card reading (DS-K1201MF)
• Card induction distance is 30mm to 100mm
• A group of messy code encrypted data for the security of fingerprint storage
• Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
• Optical CMOS fingerprint module. The characters of a fingerprint can be export to the card reader
• Max. 5000 fingerprints storage
• Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
• Fingerprint comparison time: 1:1≤1s, 1:1000≤1s; FRR≤0.01%, FAR≤0.001%
• The communication circuit is designed with optical coupling isolation and noise suppression function
• Built-in buzzer for status indication
• Accurate data and time display provided by a built-in electronic clock and watchdog program to ensure the basic function of the terminal
• Tamper-proof function

Specifications
