Meteo Control Module Temperature Sensor
R1,529.00
SKU
4400200068
Cost-effective access to module temperature measurement
Cost-effective access to outdoor temperature measurement
Connection to meteocontrol system via PT1000 direct connection
Connection to meteocontrol system via 4 - 20 mA signal
Description

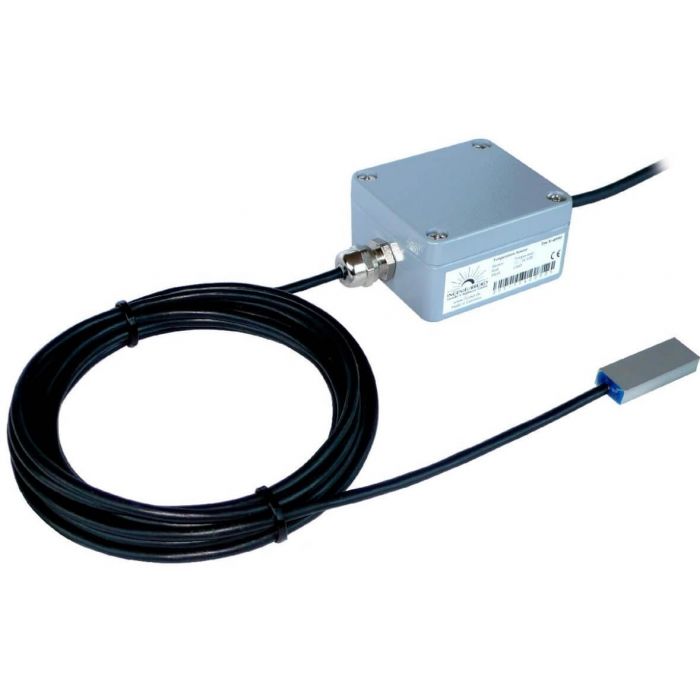

The Meteo Control Module Temperature Sensor is equipped with a stable aluminium housing and a robust weatherproof cable. Due to the use of top quality components the sensor achieves very high accuracy and is ideal for use in industrial and field environments. The sensor gets shipped with a calibration protocol for the measuring amplifier.
Features
- Connection to meteocontrol system via 4 - 20 mA signal
- Delivery with signal converter and calibration report for measurement amplifier
- Prevention of direct impact of rainfall and solar irradiance on sensor’s surrounding edging when assembled outdoors
- Connection to meteocontrol system via PT1000 direct connection
- Cost-effective access to module temperature measurement
- Cost-effective access to outdoor temperature measurement
Specifications
| Power supply | 12 - 28 VDC |
| Current consumption | max. 25 mA |
| Sensor element | PPT 1000 Class A as per EN 60751 |
| Measuring range | -40 C - +90 C |
| Measurement uncertainty | ±1 K (at -40C - +80 C) |
| Output signal | 4 - 20 mA |
| Free Shipping | No |
|---|
