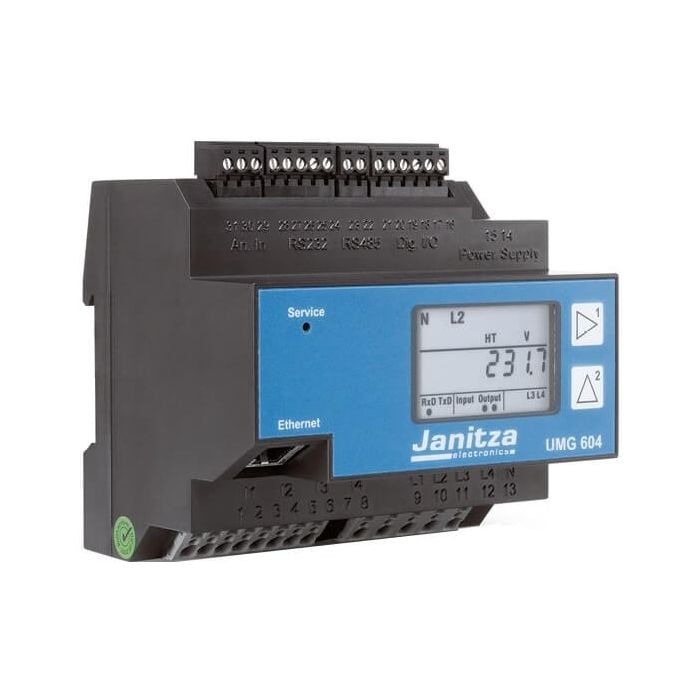

Meteo Control UMG604 Power Quality Analyser
R27,439.00
SKU
4400200160
High quality
Measuring components
Durable design
Description
The Meteo Control UMG604 Power Quality Analyser is a fully-fledged power quality analyser incorporating high-quality measuring components. It can be used to evaluate a wide variety of network parameters and is therefore ideal for active and reactive power control.
Features
- High quality
- Measuring components
- Durable design
Specifications
| Nominal voltage | |
| Three-phase 4-wire systems | 277/480 VAC |
| Three-phase 3-wire systems | 480 VAC |
| Overvoltage category | 300 V CATIII |
| Quadrants | 4 |
| Comprehensive measurement | Yes |
| Scan rate 8 channels | 20 kHz (per channel) |
| Weight | 350 g |
| Dimensions | 107.5 x 90 x 82 mm (W x H x D) |
| Installation | 35 mm DIN top-hat rail (pursuant to IEC EN60999-1/ DIN EN 50022) |
| Working temperature range | -10 C - 55 C |
| Connectable lines (U/I) | |
| One-wire, multiple-wire | 0.08 - 2.5mm^2 |
| Pin terminals, wire end ferrules | 15mm^2 |
| Protection class | IP20 (pursuant to EN60529) |
| Digital inputs | 2 (status, logic or impulse input) |
| Digital outputs | 2 (switching logic output or impulse output) |
| Temperature measurement input | 1 (PT100, PT1000, KTY83, KTY84) |
| Password protection | Yes (multiple levels) |
| Peak load management | Yes (optional 64 channels) |
| Software | Yes (GridVis) |
| Free Shipping | No |
|---|
