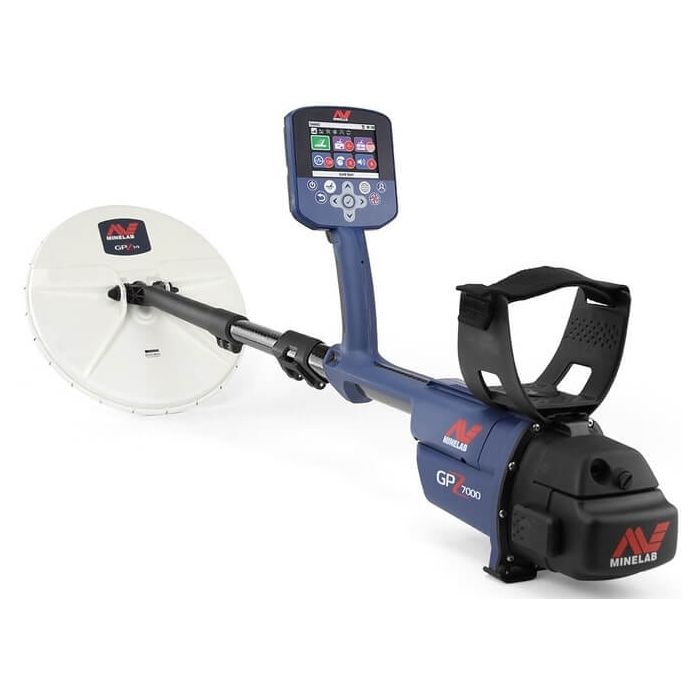

This exciting detector has many versatile features and new technologies, including wireless audio, integrated GPS and a weatherproof platform. With extreme depth capability and maximum gold sensitivity, the innovative GPZ 7000 takes gold detecting to a new level of performance.
This exciting detector has many versatile features and new technologies including wireless audio, integrated GPS and a weatherproof platform. With easy page navigation for detecting and mapping functions, and icons showing settings at a glance, you'll be an expert in no time!
Extreme Gold Depth
Maximum Gold Sensitivity
Precision Ground Balance
Enhanced Noise Immunity
Simple Menu System
Wireless Audio Freedom
GPS Locating & PC Mapping
Waterproof Coil to 1 m (3 ft)‡
With extreme depth and maximum sensitivity, the GPZ 7000 outperforms both the SDC 2300 and the GPX 5000.
* When compared to the average performance of the GPX 5000 in typical environments. Actual performance depends on prevailing conditions.
The information displayed in this graph is an out-of-the-box comparison, is indicative only, and is based on the results of laboratory measurements and field-testing undertaken by, and for, Minelab using a GPX 5000 with the 11" Monoloop coil, an SDC 2300 with attached 8" Monoloop coil and a GPZ 7000 with the GPZ 14 Super-D coil. The nominal performance for GPX 5000 with the 11" Monoloop coil is used as the baseline for comparison of the other detectors. The performance of the GPX 5000 on larger nuggets with a larger, comparable accessory 15" x 12" Monoloop coil is also depicted. Note that a GPZ 7000 with a GPZ 14 coil will also typically further outperform a GPX 5000 with larger accessory coils on small and medium nuggets.
Please be aware that the depicted results give a relative and realistic comparison of the three detectors for typical gold fields conditions for detecting the weight ranges of gold shown, but do not represent performance under all conditions, and should not be regarded as conclusive.
Minelab does not warrant or represent that the performance levels depicted will actually be achieved, as performance of the three detectors will vary depending upon prevailing conditions. Relevant factors in detector performance include, but are not limited to, detector settings, coil size and configuration, ground type, mineralisation levels and type, electromagnetic interference, gold nugget size, shape and composition, and operator skill level.
A quantum leap in gold performance with breakthrough new technology from Bruce Candy.
ZVT technology goes to the NEXT LEVEL for all serious gold prospectors, providing substantially improved depth. No longer will you be limited to using either sine wave continuous VLF transmission detectors, that struggle in mineralised ground, or square wave PI transmission detectors, that can be insensitive to varying gold sizes and compositions.
“This revolutionary new ZVT technology far surpasses GPX detectors for detecting deep large nuggets AND finding gold at any depth. The GPZ 7000 will open up the gold fields again.”
Application | Gold Prospecting (Waterproof coil to 1m/3ft) |
---|---|
Technology | ZVT |
Frequency/Transmission | Zero Voltage Transmission (ZVT) |
Coil (standard) | 14" x 13" Super‑D Configuration with skidplate (waterproof to 1 m/3 ft) |
Audio Output | 6.3 mm (¼") non waterproof socket, Wi‑Stream wireless signal transmission |
Headphones Supplied | KOSS UR 30 100 ohm with 6.3 mm plug (¼-inch) (non waterproof) |
Visual Display | Full colour LCD (320 x 240 pixels) |
Backlight | Yes |
USB Connectivity | USB interface for XChange 2 PC software |
Memory | Yes |
Detect Modes | Gold Mode (High Yield, General, Extra Deep) Ground Type (Normal, Difficult, Severe) |
Discrimination | All Metal |
Audio tone | 1-100 |
Ground Balance | Auto and Manual (Quick‑Trak trigger button) |
Ground Balance Type | Auto and Manual (Quick‑Trak trigger button) |
Sensitivity Adjust | Level (1-20) |
Tune / Noise Cancel | Auto and Manual (256 channels) |
Threshold | Level (1-50) Pitch (1-100) |
Target Volume Adjust | Range (1-20) Limit (1-20) |
Battery | Li-Ion Rechargeable Pack (7.2V DC, 72Wh) |
Low battery alert | Yes |
Length | Collapsed: 1170 mm (46.1”) Laid flat, packed position: 1304 mm (51.3”) Extended: 1526 mm (60.1”) Laid flat, packed position: 1651 mm (65.0”) |
Weight | 3.32 kg (7.32 lb) (Including GPZ 14 coil, skidplate and 72Wh battery) |
Warranty | 3 years control box & coil |
Free Shipping | No |
---|
