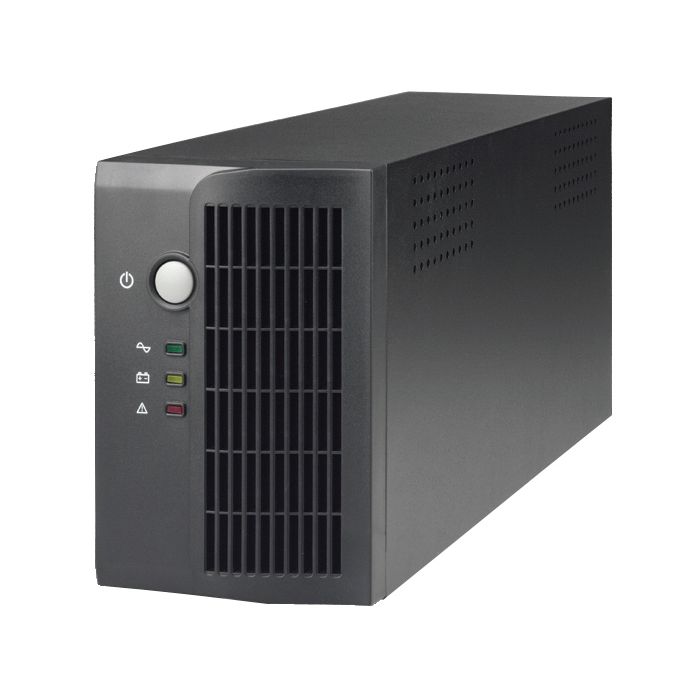

PHD Powerhouse IG2000 Inverter UPS - 2000VA, 24V
R4,599.00
SKU
IG2000
Description
The PHD Powerhouse IG2000 Inverter UPS is part of the IG Inverter Series. A DC-to-AC inverter with auto line-to-battery transfer and integrated charging system, serving as an extended run UPS, a standalone power source or an automotive inverter. The inverter supplies power from AC power and DC source. When AC cable is connected to a wall socket, utility power goes to connected equipment(s) and/or charges the battery set via charging system. In UPS mode, Inverter automatically converts battery energy into AC power for backing up the connected devices.
The IG series inverter/charger converts DC power to AC power with amazing transfer efficiency. With its compact design and aesthetic appeal, the IG series is excellent for home use on appliances such as TVs, stereos, lamps or computers.
Features
- Simulated Sine Wave inverter
- Wide input voltage range with built-in AVR
- 10A Standard charging current
- Auto-restart with AC recovery
- Overload, overcharge and short circuit protection
- Cold start function
Specifications
| Model | IG2000 |
| Capacity | 2000VA/1200W |
| Input | |
| Voltage | 220/230/240VAC |
| Selectable Voltage Range | 90 - 280VAC (wide range), 170 - 280VAC (narrow range) |
| Frequency Range | 50Hz/60Hz (auto-sensing) |
| Output | |
| AC Voltage Regulation | ±10% (battery mode) |
| Frequency Range | 50Hz/60Hz ±1Hz |
| Transfer Time | 10ms Typical |
| Battery | |
| Battery Voltage | 24Vdc |
| Floating Charge Voltage | 26.8Vdc ±2% |
| Low Battery Alarm Voltage | 21.6Vdc ±2% |
| Shutdown Voltage | 20.0Vdc ±2% |
| Overcharge Protection | 30.0Vdc ±2% |
| Maximum Charge Current | 10A or 20A optional |
| Alarm | |
| Low Battery | Sounding every second |
| Overload | Sounding every 0.5 seconds |
| Fault | Continuously sounding |
| Physical | |
| Dimensions, L x W x H (mm) | 336 x 300 x 90 |
| Net Weight (kg) | 8 |
| Operating Environment | |
| Humidity | 0 - 90% Relative Humidity (Non-Condensing) |
| Operating Temperature | 0C - 50C |
| Storage Temperature | -15C - 70C |
| Free Shipping | No |
|---|
