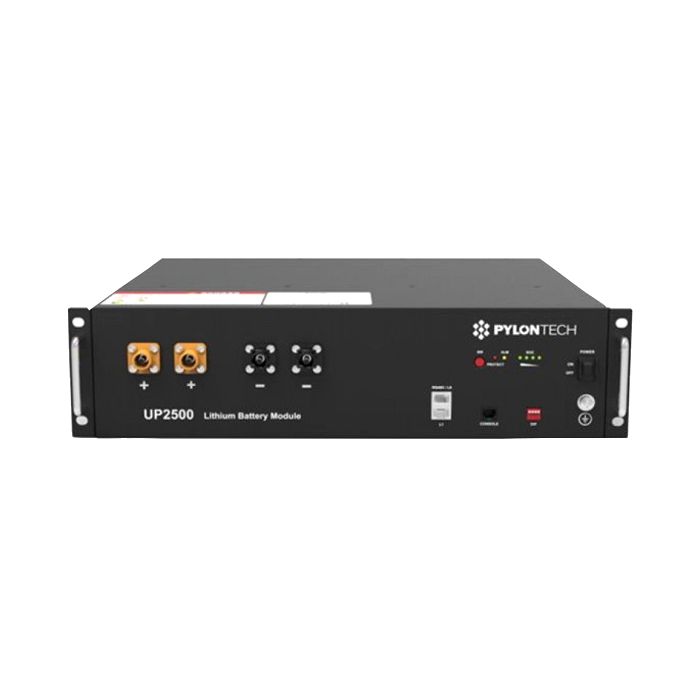

Pylon UP2500 Li-Ion Solar Battery With CAN Connection - 2.84kWh, 24V
R22,999.00
SKU
PYLONUP2500CAN
Shipping restrictions apply.
Description
The Pylon UP2500 Li-Ion Solar Battery With CAN Connection - 2.84kWh, 24V is a back system with a reliable performance and superior low failure rate standard 24V/111AH specification. Up to 90% usable capacity and 6000 cycle-life.
Please Note: The solar battery is ONLY Compatible with 24V Voltronic inverters
Features
- Solf star and cell balance function
- Protection against overcharge, short-circuit, over-current and temperature
- 90% DOD with the more usable capacity
- Superior low failure rate
- Led acid battery replacement
Specifications
| Nominal Voltage(V) | 25.6 |
| Nominal Capacity(Wh) | 2840 |
| Usable Capacity(Wh) | 2550 |
| Dimension(WxHxD) | 442 x 420 x 119 mm |
| Weight (kg) | 27.5 |
| Discharge Voltage(V) | 23~28.8 |
| Charge Voltage(V) | 28.2~28.8 |
| Charge/Discharge Current(A) | 56(continuous), 111 (Peak@15s) |
| Communication Port | CANBUS/RS485 |
| Working Temperature (C) | 0~50 |
| Shelf Temperature (C) | -20~60 |
| Humidity | 5%~90% |
| Altitude (M) | <2000 |
| Cycle Life | >6000, @25 |
| Authentication Level | IEC62619/CE/RoHS/UN38.3 |
| Free Shipping | No |
|---|
