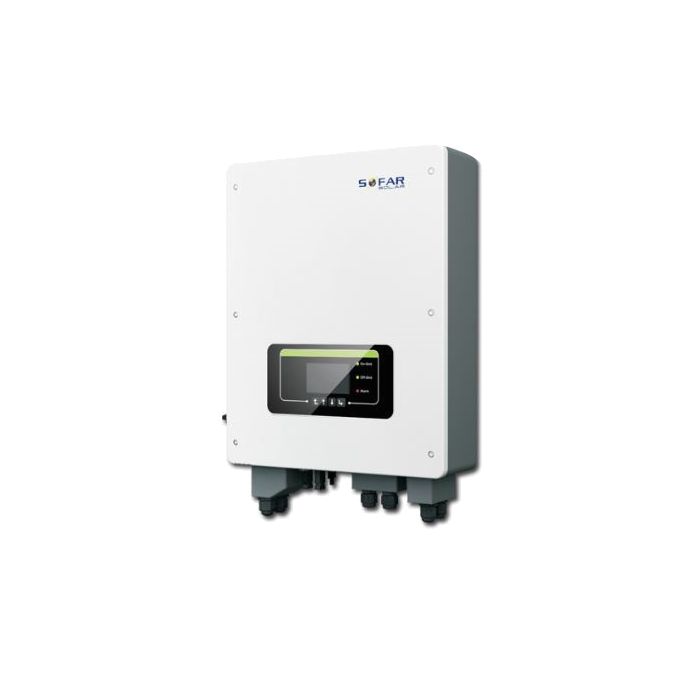

Sofar 6000-ES 6kVA/6kW Hybrid Inverter
R37,319.00
SKU
SOF6KW48V
Please Note: Due to the daily fluctuation of the Rand/Dollar Exchange during the current worldwide pandemic, the price represented may NOT be an accurate purchasing price. Please ask us for a quote per item, when checking stock.
Description
The Sofar 6000-ES 6kVA/6kW Hybrid Inverter is used in photovoltaic systems for home and business where battery backup is also required. The energy produced by the solar array will be optimized for maximum self-consumption.
Features
- High-yield - Real time precise MPPT algorithm, Wide input voltage operation range, Independent dual MPPT tracking and flexible solar roof system design
- Reliable and Safe - High-efficiency low energy loss, Low maintenance and Advanced battery management technology
- Easier Operation - Easy monitoring on the phone (APP) & PC (web)
- Multiple Working Modes - PV & storage all in one, Ensures safe operation of critical loads and Multiple operation modes selections
- Intelligent Grid Management - Reactive power capability, Limits AC output and Built-in zero export function
Specifications
| Input DC (PV side) | |
| Recommended Maximum | 6600W |
| Maximum DC Power for Single MPPT | 3500W (300V - 520V) |
| Maximum DC Input Voltage | 600V |
| Start-up DC Voltage | 120V |
| Nominal DC Voltage | 360V |
| MPPT Operating Voltage Range | 90-580V |
| Full load DC Voltage Range | 200V - 520V |
| MPPT Number | 2 |
| Maximum DC Input Current | 12A / 12A |
| Maximum DC Input Short Current | 15A / 15A |
| Battery Parameters | |
| Battery Type | Lithium-ion, Lead-acid |
| Nominal Battery Voltage | 48V |
| Battery Voltage Range | 42 - 58V |
| Battery Capacity | 50 - 2000AH |
| Maximum Charging /Discharging Power | 3000W |
| Maximum Charging Current | 60A (Programmable) |
| Maximum Discharging Current | 60A (Programmable) |
| Charging Curve (Lithium-ion) | BMS |
| Charging Curve (Lead-acid) | 3-stage adaptive with maintenance |
| Depth of Discharge | Lithium-ion: 0 - 90% DOD adjustable, Lead-acid: 0 - 50% DOD adjustable |
| Output AC (Grid side) | |
| Rated Power | 6000W |
| Maximum Output Power | 6000VA |
| Nominal Grid Voltage | L / N / PE, 220, 230, 240 |
| Operation Phase | Single(L - N - PE) |
| Maximum Input/Output Current | 180V ~ 276V |
| AC Voltage Range | 27.3A |
| Grid Frequency Range | 44 - 55Hz / 54 - 66Hz |
| THD | <3% |
| Power Factor | 1 default (+ / -0.8 adjustable) |
| General Data | |
| Topology | High-frequency insolation |
| DC-Switch | Yes |
| Maximum Operating Altitude | 2000m |
| Noise | <25dB |
| Weight | 20.5kg |
| Cooling | Natural |
| Dimensions (W x H x D) | 566 x 394 x 173mm |
| Efficiency | |
| MPPT Efficiency | 99.9% |
| Maximum Efficiency of Solar Inverter | 98% |
| European Efficiency of Solar Inverter | 97.5% |
| Maximum Charging Efficiency of Battery | 94.9% |
| Maximum Discharging Efficiency of Battery | 94.9% |
| Protection | |
| PV Reverse Polarity Protection | Yes |
| PV Insulation Detection | Yes |
| Ground Fault Monitoring | Yes |
| Over-Current Protection | Yes |
| Overvoltage Protection | Yes |
| Battery Soft Start Protection | Yes |
| Free Shipping | No |
|---|
