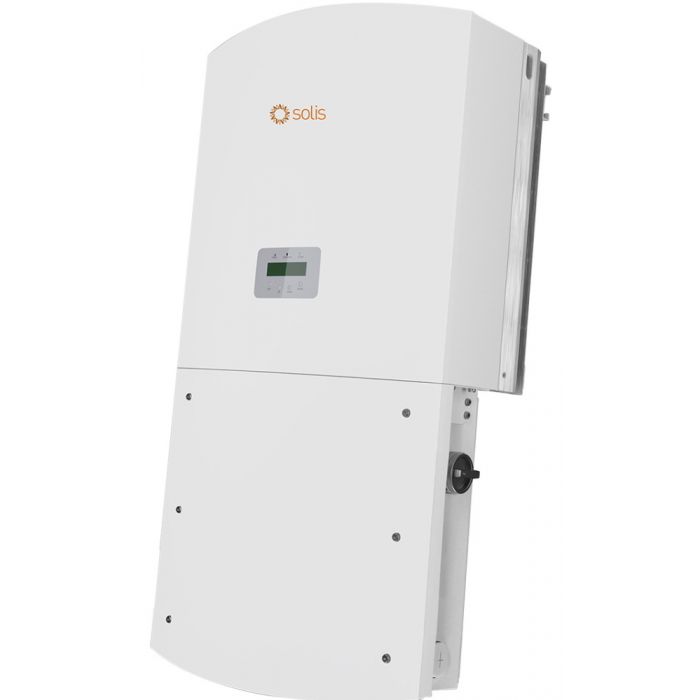

Solis 3 Phase Quad MPPT Inverter - 60kW, DC With Type I/II SPD
R64,009.00
SKU
SOL6003PHFDCSPD
Shipping restrictions apply.
Description
The Solis 3 Phase Quad MPPT Inverter - 60kW, DC With Type I/II SPD is designed specifically to meet the requirements of a simple, low-cost installation where a quad MPPT inverter is required. A key aspect of the inverter is that it has the Type I and II surge protection. Suitable for commercial and industrial PV plants.
Please Note: Includes fuses, DC switch, and type I/II SPD.
Features
- Up to 99% maximum efficiency
- 200V-1000V MPPT voltage range
- Four MPPT design with precise MPPT algorithm
- High current MPPT inputs, compatible with high power modules
- Compact and light design for two-person easy installation
- IP65 protection
- RS485,Wi-Fi/GPRS(all optional) interface
- Wi-Fi and monitoring app available
- Intelligent redundant fan cooling
- Type 1 & 2 combined PV SPD (din rail mount)
- String fusing (positive & negative fusing)
Specifications
| Weight | 63 kg |
| Rated Power | 60,000 W |
| Min PPT Voltage | 200 V |
| Max PPT Voltage | 1,000 V |
| DC Start-up Voltage | 200 V |
| DC Shutdown Voltage | 200 V |
| Max Input Voltage | 1,100 V |
| Max DC Power | 72,000 W |
| Max Ac Power | 66,000 W |
| Surge Ac Power | 66,000 W |
| Max DC Current | 114 A |
| Max DC Inputs | 12 |
| Has DC Fuses | 12 |
| Connector | MC4 |
| Included Connectors | 12 |
| Euro Efficiency | 98.5 % |
| Transformer | None |
| MPPT Quantity | 4 |
| Has Integrated DC Switch | Yes |
| Free Shipping | No |
|---|
