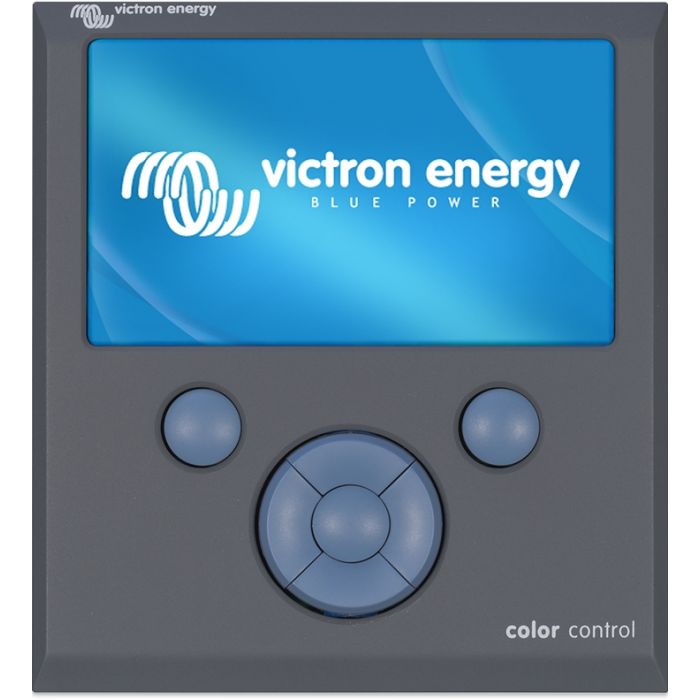

Victron Color Control GX
R9,979.00
SKU
3800700053
The full power of Victron Remote Management
Automatic Generator start/stop
Remote Console - control everything from anywhere
Energy Storage Systems
24-Hour Monitoring
Please Note: Victron products are, according to the Victron supplier of South Africa, only to be supplied to installers with professional Victron training. Unfortunately we are prohibited from selling Victron products to customers who do not meet these requirements. For further information please contact Victron at: [email protected]
Description
The Color Control GX is the communication-centre of your installation. It offers at-a-glance live information and lets you control all products connected to it. Full system control is gained - almost anywhere in the world - by accessing your Color Control GX using our free-to-use Victron Remote Management Portal.
Features
- The full power of Victron Remote Management
- Automatic Generator start/stop
- Remote Console - control everything from anywhere
- Energy Storage Systems - 24-Hour Monitoring
- Remotely monitor your boat or motorhome electrics
- Intuitive system overview - all you need to know
Specifications
| Brand | Victron Energy |
| Power supply voltage range | 9 – 70 V DC |
| Switched off | 12 V / 0 mA 24 V / 0 mA 48 V / 0 mA |
| Display off | 140mA 80mA 40mA |
| Display at minimum intensity | 12 V/160 mA 24 V/90 mA 48 V/ 45 mA |
| Display at maximum intensity | 12 V/245 mA 24 V/125 mA 48 V/65 mA |
| Potential free contact | 3 A / 30 V DC / 250 V AC (Normally open) |
| Communication ports | |
| VE.Direct | 2 separate VE.Direct ports – isolated |
| VE.Can | 2 paralleled RJ45 sockets – isolated |
| VE.Bus | 2 paralleled RJ45 sockets – isolated |
| USB | 2 USB Host ports – not isolated |
| Ethernet | 10/100/1000MB RJ45 socket – isolated except shield |
| 3rd party interfacing | |
| Modbus-TCP | Use Modbus-TCP to monitor and control all products connected to the Color Control GX |
| JSON | Use the VRM JSON API to retrieve data from the VRM Portal |
| Other | |
| Outer dimensions | 130 x 120 x 28 mm |
| Operating temperature range | -20 to +50 °C |
| Standards | |
| Safety | EN 60950 |
| EMC | EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive | E4-10R-053535 |
| Free Shipping | No |
|---|
