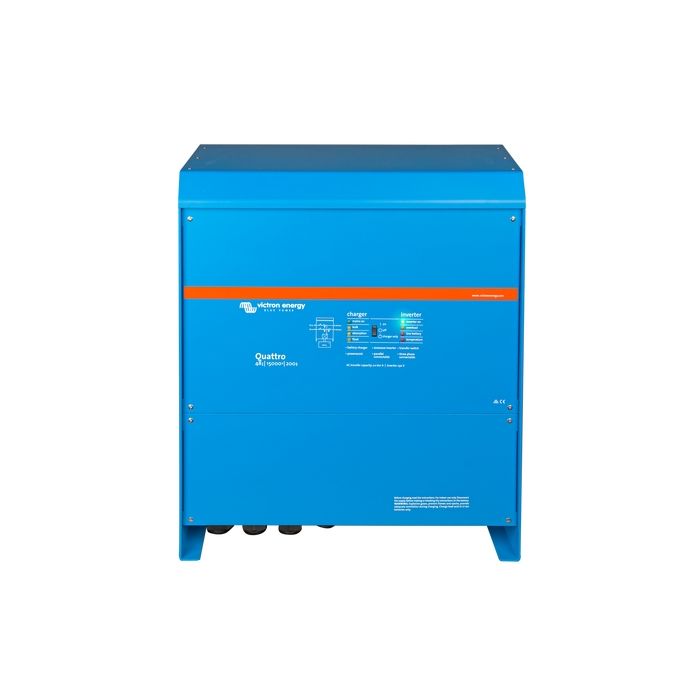

Victron Quattro Inverter And Charger - 48/15000 - 200-100/100

R94,389.00
SKU
3800700046
Two AC Inputs & two AC Outputs Unique PowerAssist feature Virtually unlimited power thanks to parallel operation Remote Monitoring and Control
Confirm Availability
In stock
Shipping restrictions apply.
Safe & Secure Shopping
Satisfaction Guaranteed

Please NoteVictron products are, according to the Victron supplier of South Africa, only to be supplied to installers with professional Victron training. Unfortunately we are prohibited from selling Victron products to customers who do not meet these requirements. For further information please contact Victron at: [email protected]




Manufacturer's Website



Description

Similar to the MultiPlus, the Victron Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.



Please Note: All Victron units are for use in photovoltaic systems only. These inverters are not 'plug and play', as you cannot plug these units directly into a standard wall socket. This unit should only be installed by professionals, please contact a registered/certified installer for help.



Features

  • Two AC Inputs & two AC Outputs
  • Unique PowerAssist feature
  • Virtually unlimited power thanks to parallel operation
  • Remote Monitoring and Control



Specifications

PowerControl / PowerAssist Yes
Integrated Transfer switch Yes
AC inputs (2x) Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current 2x 100
INVERTER
Input voltage range 38 – 66V
Output Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (Non-linear load, crest factor 3:1) 15000 VA
Cont. output power at 25°C 12000 W
Cont. output power at 40°C 1000 W
Cont. output power at 65°C 7000 W
Peak power 25000 W
Maximum efficiency 96%
Zero load power 80 W
Zero load power in AES mode 50 W
Zero load power in Search mode 30 W
CHARGER
Charge voltage 'absorption' (V DC) 57,6 V
Charge voltage 'float' (V DC) 55,2 V
Storage mode (V DC) 52,8 V
Charge current house battery 200 A
Charge current starter battery 4 A (12V and 24V models only)
Battery temperature sensor Yes
GENERAL
Auxiliary output 50 A
Programmable relay 3x
Protection a-g
VE.Bus communication port For parallel, split phase and three phase operation, remote monitoring and system integration
General purpose com. port 2x
Remote on-off Yes
Common Characteristics Operating temp.: -40 to +65 ËšC Humidity (non-condensing): max. 95%
ENCLOSURE
Common Characteristics Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection Four M8 bolts (2 plus and 2 minus connections)
230 V AC-connection Bolts M6
Weight 72 kg
Dimensions 572 x 488 x 344 mm
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles 12V and 24V models: ECE R10-4
Anti-islanding See Victron website
