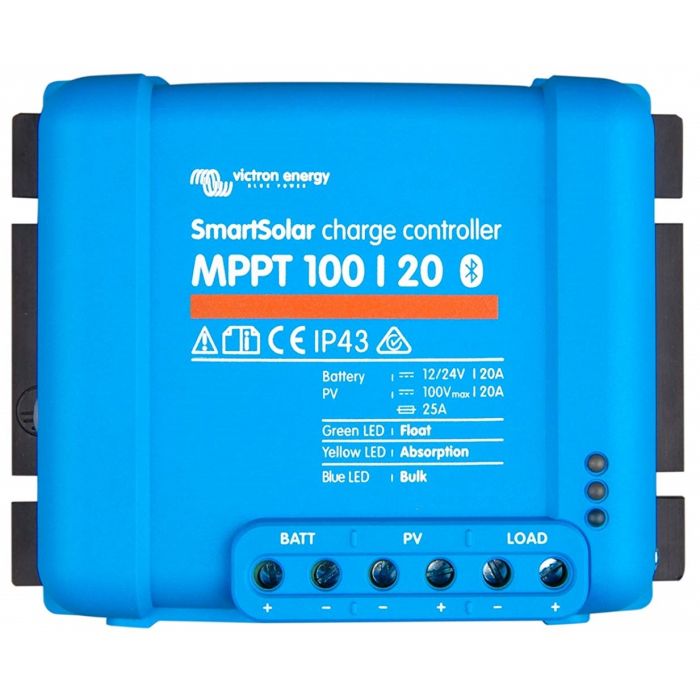

Victron SmartSolar Charging Controller - MPPT 100/20
R3,579.00
SKU
5001000018
Please Note: Victron products are, according to the Victron supplier of South Africa, only to be supplied to installers with professional Victron training. Unfortunately we are prohibited from selling Victron products to customers who do not meet these requirements. For further information please contact Victron at: [email protected]
Description
The Victron SmartSolar Charge Controller is intelligent, featuring a wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices. A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
Features
- Bluetooth Smart built-in: dongle not needed
- VE.Direct
- Ultra-fast Maximum Power Point Tracking (MPPT)
- Load output
- Battery Life: intelligent battery management
- Programmable battery charge algorithm
- Day/night timing and light dimming option
- Programming, real-time data and history display options
Specifications
| Brand | Victron Energy |
| Battery voltage | 12V/24V Auto Select |
| Rated charge current | 20 A |
| Nominal PV power | 12V: 290W, 24V: 580W |
| Max PV short circuit current | 20 A |
| Maximum PV open circuit voltage | 100V |
| Peak Efficiency | 98% |
| Self-consumption | 12V: 25 mA 24V: 15 mA |
| Charge voltage 'absorption' | 14,4V / 28,8V (adjustable) |
| Charge voltage 'float' | 13,8V / 27,6V (adjustable) |
| Charge algorithm | multi-stage adaptive (eight pre-programmed algorithms) |
| Temperature compensation | -16 mV / -32 mV / °C |
| Protection | Battery reverse polarity (fuse) / Output short circuit / Over temperature |
| Operating Temperature | -30 to +60 °C (full rated output up to 40°C) |
| Humidity | 95 %, non-condensing |
| Data Communication port | VE.Direct |
| Enclosure | |
| Colour | Blue (RAL 5012) |
| Power terminals | 6 mm^2 / AWG10 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 0.65 kg |
| Dimensions | 100 x 113 x 60 mm |
| Saftey | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| Free Shipping | No |
|---|
