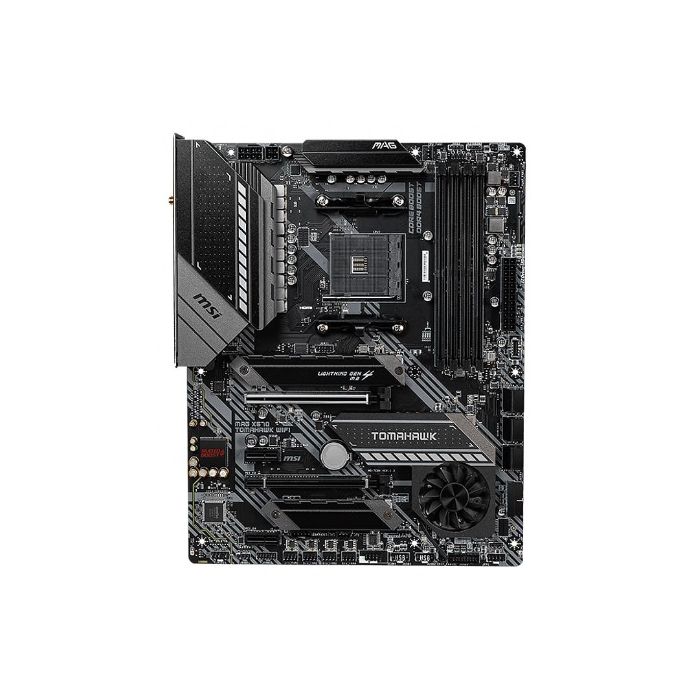

MSI Mag X570 Tomahawk WiFi AMD AM4 ATX Motherboard

R6,899.00
SKU
MAGX570TOMAHAWKWIFI
Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed
Manufacturer's Website



Description

The MSI Mag X570 Tomahawk WiFi AMD AM4 ATX Motherboard has been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want. Cooling is essential for a high performance PC to sustain intense workloads. MSI motherboards feature a heavy duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it.

MSI motherboards been designed to make the system assembly process as convenient as possible. An array of configuration settings and troubleshooting tools are available to ease installation and setup. Pin-headers, SATA, and USB connectors are positioned away from other components and devices. A comprehensive DDR memory Qualified Vendor List (QVL), the result of extensive memory testing and tuning, makes it easier to pick from compatible products. MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.



Features

  • Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4600 MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen 2
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
  • Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers
  • Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connectors, Game Boost, DDR4 Boost
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Intel Wireless and Bluetooth enabled



Specifications

Socket AM4
CPU (Max Support) RYZEN 9
Chipset AMD X570 Chipset
DDR4 Memory 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE
Memory Channel Dual
DIMM Slots 4
Max Memory (GB) 128
PCI-E x16 2
PCI-E x1 2
SATAIII 6
M.2 Slot 2
RAID 0/1/10
TPM (Header) 1
LAN 1x Realtek 8125B 2.5G LAN controller
Wireless and Bluetooth Intel Wi-Fi 6 AX200
USB 3.2 ports (Front) 1(Gen 2, Type C), 4(Gen 1, Type A)
USB 3.2 ports (Rear) 3(Gen 2, Type A), 1(Gen 2 Type C), 2(Gen 1, Type A)
USB 2.0 ports (Front) 4
USB 2.0 ports (Rear) 2
Audio ports (Rear) 5+ Optical S/PDIF (Realtek ALC1200 Codec)
HDMI 1
DirectX 12
Form Factor ATX
CrossFire Yes
Operating System Support for Windows 10 64-bit
