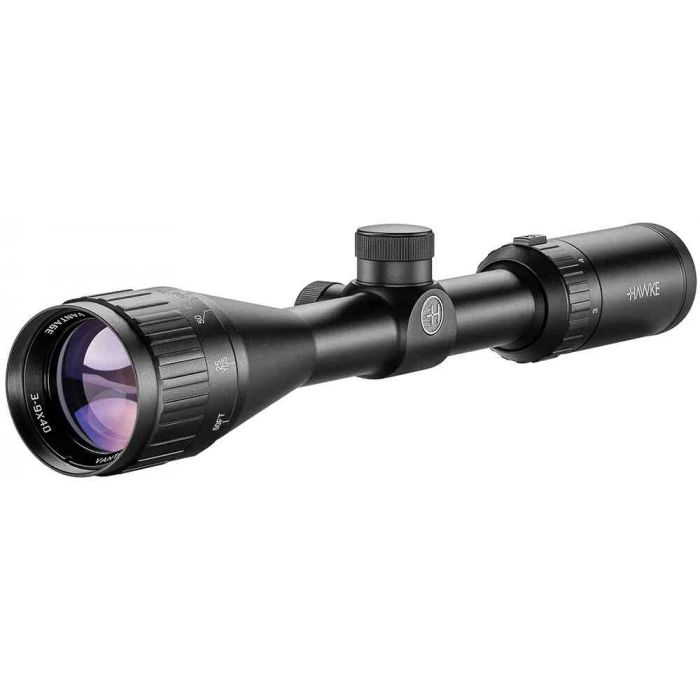

Hawke Vantage 3-9x40 AO Riflescope - Mil Dot Reticle


Be the first to review this product



Mil Dot Duplex Reticle
1" One-Piece Maintube
1/4 MOA / Click Impact Point Correction
100 MOA Windage / Elevation Adjustment
Capped Turrets with Parallax Adjustment
Anodized Aluminium Alloy Housing
11-Layer Fully Multi-Coated Optics
Nitrogen-Filled, Water and Fogproof



Manufacturer's Website



Designed as a multi-purpose, utilitarian mid to long-range optic, the Hawke Optics 3-9x40 Vantage AO Riflescope boasts a 40mm objective that draws in generous amounts of light versus smaller objectives while helping to maintain a low-profile to reduce snags and weight. Covered turrets help guard against accidental adjustments while a fast-focus collar and zoom ring allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminium housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof.



  • 3-9x zoom range
  • 40mm objective lens
  • 11-layer anti-reflection fully multi-coated optics
  • 39-12.7' field of view at 100 yards
  • Duplex crosshair-style reticle
  • Four mil-dots on all axes, spaced 1 mrad (3.44 MOA) apart
  • Use for ranging, hold-over/under, and estimating target size
  • Placed on second focal plane
  • Fast-focus collar
  • 1/4 MOA per click impact point correction
  • 100 MOA windage and elevation adjustment range
  • Side parallax turret, adjustable from 10 yards to infinity
  • Low-profile covered turret caps prevent accidental adjustment
  • 3.5" long eye relief
  • 13-4mm exit pupil
  • 1" one-piece maintube
  • Lightweight and durable aluminium alloy housing
  • Nitrogen-filled for water and fogproof performance
  • Rated for use on most calibers and recoil-resistant



Magnification 3-9x
Objective Lens Diameter 40mm
Maintube Diameter 1"
Reticle Mil Dot
Field of View 39.0-12.7' @ 100 yd / 13.0 - 4.2 m @ 100 m
Parallax Correction Side adjustment turret
  Adjustable from 10 yd / 9 m to infinity
Eye Relief 3.5" / 8.9 cm
Exit Pupil Diameter 13.0 - 4.0 mm
Impact Point Correction 1/4 MOA per click
Windage/Elevation Adjustment 100 MOA
Weatherproofing Nitrogen-filled, water, and fogproof
Length 12.7" / 32.2 cm
Weight 17.0 oz / 482.0 g
