Joint Ventures LED Grow Light - 200W

Joint Ventures Electronics
5799 Futurama.co.za

Be the first to review this product

200W Non-dimmable
High Efficiency
Up to 1.2 mx 0.6m Flowering Area



Manufacturer's Website

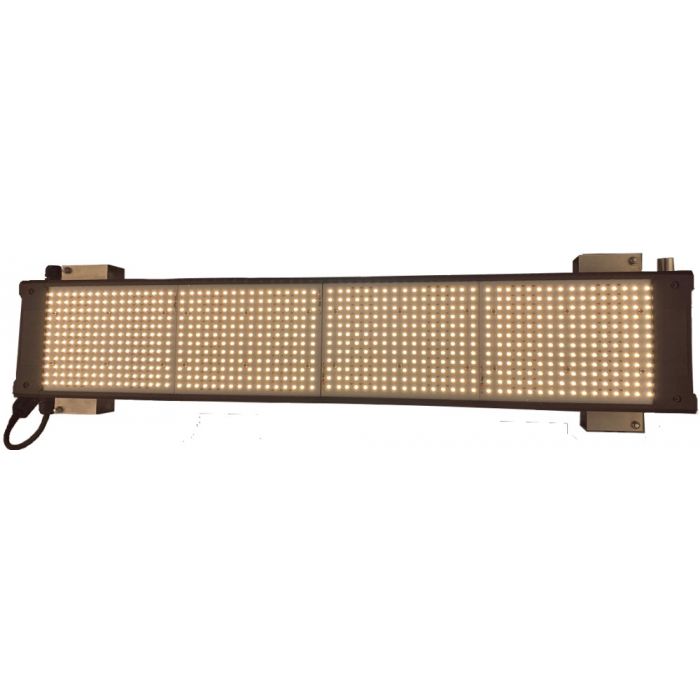

The Joint Ventures LED Grow Light is an active cooled LED horticulture grow light fixtures for indoor use. Available in 200W non-dimmable or 240W dimmable driver option.  All components are self contained within the aluminium body so there is no need for external drivers or ballasts.

The LED PC boards are designed and assembled in-house using Lumileds 2835 High Efficacy 3500K 80CRI mid-power diodes as the base spectrum.  3500 Kelvin is a great all-round spectrum for the complete cycle of plant growth, from seedling to harvest.

A powerful extraction fan helps to keep the temperature of the LED boards and internal components as low as possible. The fan is linked to a temperature control unit which actively monitors and adjusts fan speed according to the current internal temperature.

Photosynthetic Active Radiation is light within the spectral range of 400-700nm (blue-red) which is used by plants to drive photosynthesis.

PPFD, or Photosynthetic Photon Flux Density is the amount of PAR light that reaches a specific point. With these measurements we can visualize how light intensity from a fixture is distributed and also calculate and compare the efficiency (PPFD/Watt) over the test area.



  • High efficiency and PPF output at a competitive price
  • Option of 200W non-dimmable and 240W dimmable fixtures
  • High performance Mean Well LED drivers (HLG/XLG series)
  • Modular design
  • Suitable for a flowering area of up to 1.2x0.6m per fixture
  • Designed and manufactured in South Africa



LED Fixture 200W
Built-in Driver Mean Well XLG-200-24A
Dimmable No
LEDs 768x Lumileds LUXEON 2835 High Efficacy 3500K 80CRI (195lm/W @65mA)
Enclosure Black anodized extruded aluminium with ABS endcaps (all manufactured locally)
Cooling 44CFM brushless blower fan, rated for 70 000 hrs continuous operation
Acoustic Noise 62dB(A) maximum
Dimensions 800x65x200mm
Weight 4.5kg
