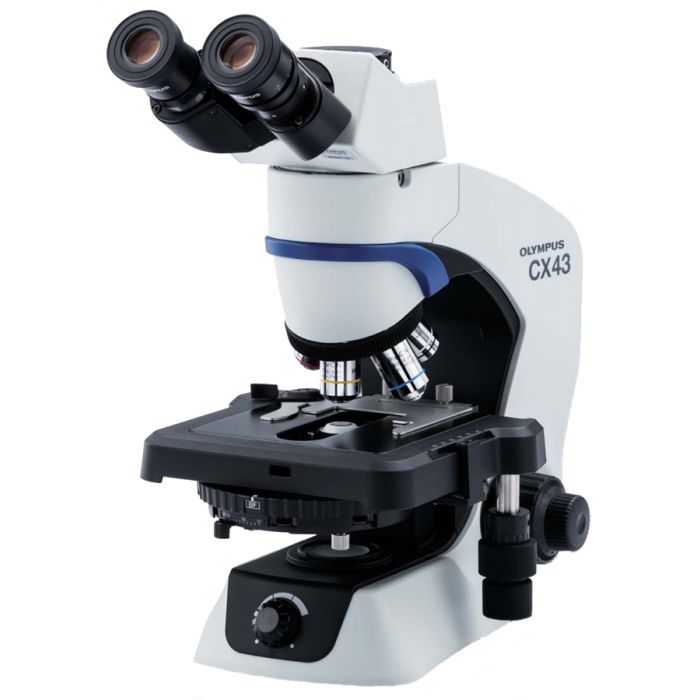

Olympus CX43 LED Microscope with Universal Condenser & Added Accessories

Manufacturer's Website

Description

The Olympus CX43 LED Microscope with Universal Condenser enables users to remain comfortable during routine microscopy. The microscope frame well fit the hands and the location of the control knobs maximize ergonomics to improve work efficiency.

Users can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand with minimal movement. Both microscopes also feature a camera port for digital imaging.

The color temperature of the CX LED illumination produces daylight conditions, so specimens can be viewed with their natural colors. The color temperature is consistent at any brightness, so users don’t have to spend time making adjustments when they change brightness. The LEDs have a long 60,000-hour lifetime in the design value, helping reduce cost, and the brightness level remains stable throughout the LED’s life.

Users can preserve their favorite contrast by locking the aperture diaphragm. It stays fixed at the optimally chosen position if it is accidentally touched while changing slides. Users can also change the magnification from 4X to 100X without moving the top lens on the condenser. 2X magnification is also available by simply setting the objective and the condenser turret to 2X position.

The microscope employs Plan Achromat objectives, which provide clear images with high image flatness over a wide field of view. This helps users view specimens clearly and evenly during routine microscope observations.

Fluorescence observation is simple and easy. Plug the compact fluorescent illuminator into the microscope frame for fluorescence observation. Its LED light source is pre-centered, and the transmitted illumination is shuttered by simply setting the condenser turret to the FL position. This reduces background noise in the fluorescence image from incidental light coming from the top lens of the condenser.

Features

• Uniform Illumination with Consistent Colour Temperature
• Excellent Optical Performance for Flat Images
• Simple Fluorescence Observation
• Single-Handed Sample Placement
• Use Up to Five Objectives
• Smooth Magnification Change
• Ergonomically-Positioned Focus Knob
• Specimen Holders that Match Your Observation Style
• Simplified Fluorescence Observation
• Trinocular tube with leadfree optics, 30° inclination and pupillary distance adjustment from 48-75 mm. With fixed 50/50 light distribution and adjustable diopter range (± 5 diopter) on left sleeve.
• Widefield eyepiece
• Centering telescope for phase contrast, diameter 23.5mm
• Plan Achromat C objective with 10x magnification
• Plan Achromat C objective with 40x magnification
• Plan Achromat C oil immersion objective with 100x magnification
• Camera adapter with C-mount, 0.5x magnification gives full field number (FN) 22 on 2/3“ CCD camera chips with high IR transmission
• 5 Mpx, 1/1.8 inch, colour CMOS Camera for C-mount adaption
• Power Cord
