Revov Cube 800 All-In-One Backup System
R111,809.00
SKU
SYS-2LiFe-CUBE800-SS-200-10.2
Shipping restrictions apply.
Description

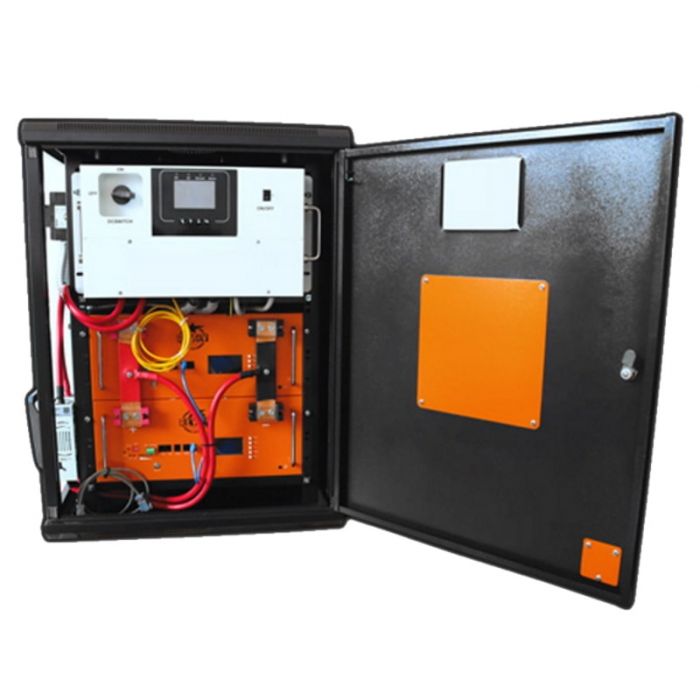

The Revov CUBE 800 All-In-One Backup System is a compact, fully integrated, and all-in-one backup system with pre-programmed inverter pre-connected batteries and BMS, a 6kW inverter with 7800W MPPT. The entire unit contains all the necessary wiring and correct fusing, thereby making it quick to install and easy to store. The best feature about this product is that it comes with two 2nd LiFe R100. 51.2V 100Ah Batteries.
Features
- Remote monitoring function as standard
- Three phase & parallel configurations available on request (3 CUBE units)
- Pure Sine Wave AC Output- long-lasting and safe
- Provision for Solar Panels attachment with built-in MPPT solar charge controller, capable of 7800W input at 500VDC
- Perfect for residential or small business requiring backup
- Compact fully integrated all-in-one backup system perfect for small businesses and homes
Specifications
| Output | |
| Transfer Time Max | 20ms |
| Waveform | Pure Sinewave |
| Power Output | 6000W |
| Max Peak Power Output | 12 000W for 10sec |
| Voltage | 230V |
| Battery | |
| Nominal Voltage | 51.2VDC |
| Nominal Capacity | 200Ah |
| Bulk/Absorption Voltage | 55.5V |
| Floating Charge Voltage | 54.5V |
| Max Charge Current | 60A per Battery |
| Energy Capacity | 10.2kWh |
| Recommended Charge Current | 60A |
| Available Depth of Discharge | 95% |
| Maintenance | Charge the Battery every 6 months when not in use |
| Solar Charger | |
| Max Charging Current | 135A |
| System Voltage | 48VDC |
| Operating Voltage Range | 100 to 500VDC |
| Max. PV Array Open Circuit Voltage | 500VDC |
| Max PV Array Power | 7800W |
| Dimensions | 600mm x 600mm x 800mm (L x W x H) |
| Free Shipping | No |
|---|
