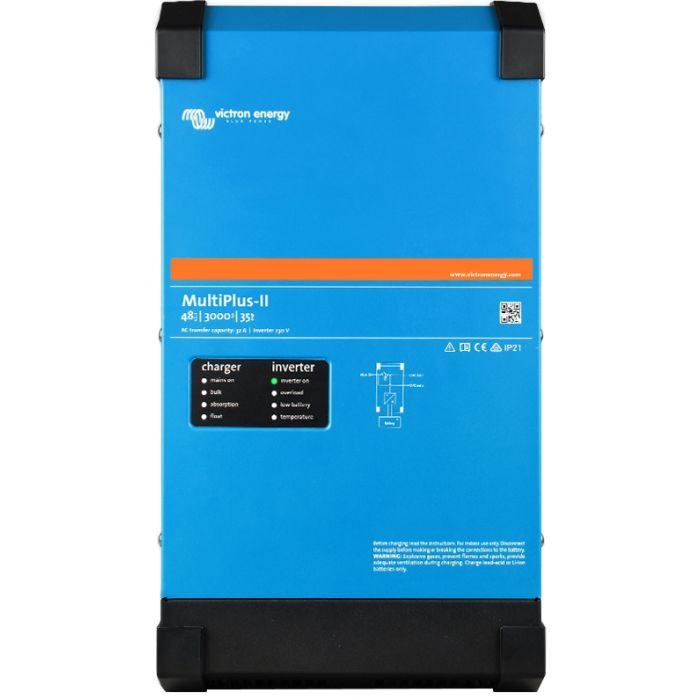

The Victron Energy MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
Monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Multi to auto-starting a back generator and more.
The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery. The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Please Note: All Victron units are for use in photovoltaic systems only. These inverters are not 'plug and play', as you cannot plug these units directly into a standard wall socket. This unit should only be installed by professionals, please contact a registered/certified installer for help.
- PowerControl & PowerAssist
- Battery temperature and voltage sensor
- 35 A Maximum battery charge current
- 95 % efficiency
- 5500 Watts Peak Power
- Programmable relay
|PowerControl & PowerAssist||Yes|
|Transfer switch||32 A|
|DC Input voltage range||38 – 66 V|
|Output voltage||230 VAC ± 2 %|
|Frequency||50 Hz ± 0,1 %|
|Cont. output power at 25°C||3000 VA|
|Cont. output power at 25°C||2400 W|
|Cont. output power at 40°C||2200 W|
|Cont. output power at 65°C||1700 W|
|Peak power||5500 W|
|Zero load power||11 W 25 W|
|Zero load power in AES mode||7 W 20 W|
|Zero load power in Search mode||2 W|
|AC Input Input voltage range||187-265 VAC|
|Input frequency||45 – 65 Hz|
|Charge voltage 'absorption'||57,6 V|
|Charge voltage 'float'||55,2 V|
|Storage mode||52,8 V|
|Maximum battery charge current||35 A|
|Battery temperature and voltage sensor||VE.Bus Smart dongle (optional)|
|Auxiliary output||Yes (32 A) Directly connected to the AC input|
|External current sensor (optional)||Yes|
|Programmable relay||Yes, but not the same functionality|
|Protection||a - g|
|VE.Bus communication port||For parallel and three phase operation, remote monitoring and system integration|
|General purpose com. ports||Yes, Aux in 1 and Aux in 2|
|Operating temperature range||-40 to +65°C (fan assisted cooling)|
|Humidity (non-condensing)||max 95%|
|Material & Colour||Steel, blue RAL 5012|
|Protection category||IP 22|
|Battery-connection||Two M6 bolts|
|230 V AC-connection||Screw terminals 13 mm² (6 AWG)|
|Dimensions||499 x 268 x 141 mm|
