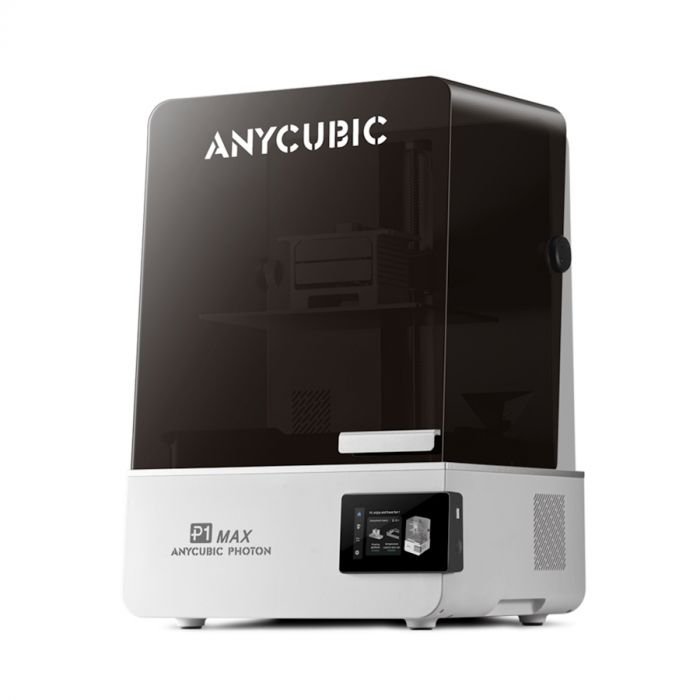

Anycubic Photon P1 Max 3D Resin Printer

Manufacturer's Website

Description

Introducing the Anycubic Photon P1 Max 3D Resin Printer. A large-format MSLA resin 3D printer designed for creators, professionals, and production users who need substantially more build space without giving up the fine detail associated with resin printing. Its impressive 285.5 x 214 x 300 mm build volume, providing approximately 18.3 litres of usable space, allows users to produce large models, tall intricate parts, or high-volume batches in a single print cycle. This reduces the need to divide oversized designs into separate pieces that would later need to be assembled, glued, or aligned. Despite its large printing capacity, the Photon P1 Max is engineered for precision. Its 14-inch 12K monochrome LCD provides an X/Y resolution of 24.8 x 24.8 m, while adjustable layer heights from 0.02 to 0.15 mm give users control over the balance between fine detail and practical production speed. A precision-ground steel build platform provides a stable foundation for prints, while dual linear guide rails and ball lead screws on the Z-axis deliver smooth and repeatable vertical movement. Standard resin printing speeds are approximately 1525 mm/h at a 0.05 mm layer height, making the machine particularly suited to detailed large-format work and batch production.

Setting up a large resin printer can be challenging, but the P1 Max addresses this with Leveling-Free 3.0 technology. The system combines factory calibration with automatic levelling self-checks and real-time levelling feedback, including force values across all four corners. This helps simplify initial setup and maintain consistent printing conditions without requiring extensive manual levelling. Power-loss resume provides additional protection for long-running jobs by allowing interrupted prints to continue after an unexpected power outage. The Photon P1 Max also incorporates features designed for extended and unattended printing. Dynamic temperature control for the resin vat helps maintain consistent resin viscosity during the printing process, while the hotbed can reach temperatures of up to 35C when ambient conditions are at least 5C. The printer supports all Anycubic resins, as well as 8000 cps high-viscosity resin, giving users considerable flexibility when selecting materials for different applications. Its 1.9-litre resin vat provides substantial capacity for the machine's large build area, although the system does not include automatic resin filling.

Connectivity and remote management are another focus of the P1 Max. An integrated camera enables remote print submission and real-time monitoring through the Anycubic App, while both Wi-Fi and Ethernet connectivity provide flexible networking options. Users can also transfer print files using a USB drive. The printer supports several established slicer platforms, including Photon Workshop, Chitubox, Lychee, and Tango, allowing creators to integrate it into existing workflows. Direct control is provided through a 4.5-inch resistive touchscreen, while the smooth-hinge cover provides convenient access to the large printing area. Overall, the Anycubic Photon P1 Max is built for users who want to scale resin printing significantly while maintaining the precision and surface quality expected from MSLA technology. Its 18.3-litre build volume, 14-inch 12K monochrome LCD, 24.8 m X/Y resolution, Leveling-Free 3.0 system, dynamic resin temperature control, remote camera monitoring, and broad software compatibility make it particularly well suited to large models, detailed prototypes, production batches, and professional applications. With operating noise rated at 45 dB, a substantial 1.9-litre resin vat, and dimensions of approximately 430 x 414 x 625 mm, the Photon P1 Max provides a serious large-format resin printing platform for creators ready to move beyond conventional resin printer sizes.

Features

• Large 285.5x214x300 mm (18.3L) build volume
• MSLA resin printing technology
• Leveling-Free 3.0 with automatic self-check
• Precision-ground steel build platform
• Dynamic temperature control
• Integrated camera for remote print
• Dual-network connectivity
• Quiet operation at -/<45 dB
• Power loss resume
• Supports all Anycubic resins and 8000 cps high-viscosity resin

Specifications

Package Contents

• 1x Anycubic Photon P1 Max
• 1x Print Platform
• 1x Resin Vat
• 1x Wet Wipes
• 1x Hex Key Set
• 1x Protective Equipment
• 1x Filter
• 1x Scrapers
• 1x USB Drive
• 1x Power Cord
• 1x User Manual
