Anycubic Wash And Cure 3 Max Station

Manufacturer's Website

Description

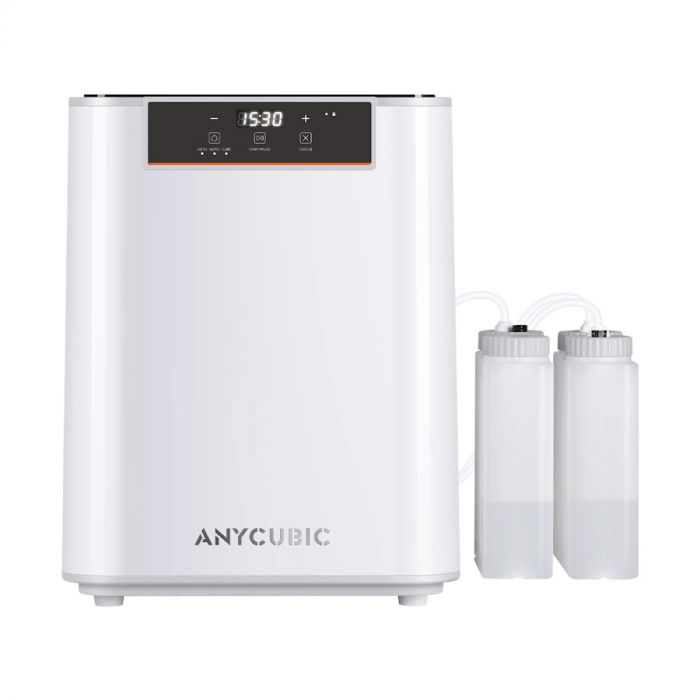

Introducing the Anycubic Wash And Cure 3 Max Station. An ultra-large post-processing station designed for serious resin 3D printing enthusiasts, professional users, studios, and production environments that need to clean and cure large models or multiple prints efficiently. Combining high-capacity washing and powerful UV curing in one system, it provides a streamlined solution for resin print finishing. With a maximum cleaning size of 305 x 165 x 300 mm and compatibility with most mainstream LCD resin printers up to 13.6 inches, it is particularly well suited to large-format resin printing workflows. With a 15.1-litre maximum curing volume and a substantial 20-litre cleaning container, the Wash & Cure 3 Max provides plenty of room for oversized models and batch-processing multiple smaller prints. Its cleaning system combines 360 spray cleaning with bottom-section immersion, helping remove uncured resin thoroughly while making efficient use of alcohol-based cleaning solutions. The large capacity makes it a natural companion for printers such as the Photon M3 Max and Photon Mono M7 Max, as well as other compatible large-format LCD resin printers.

The entire post-processing workflow can be simplified through the station's one-click automated washing and curing system. Users can choose between three flexible operating modes: Auto mode, with a duration of 1342.5 minutes Wash mode, adjustable from 1039.5 minutes and Cure mode, adjustable from 0.530 minutes. This allows the processing cycle to be tailored according to the size, complexity, and requirements of individual prints, while reducing the need for manual handling between washing and curing stages. For UV curing, the Wash & Cure 3 Max uses a 360 rotating curing platform combined with 20 x 405nm UV LEDs and a flexible gooseneck light. The system can achieve a maximum curing power density of 25,000 W/cm at an 18 cm irradiation distance, helping provide thorough and consistent UV exposure around the model. The gooseneck light also provides additional flexibility for targeting specific areas, fine details, or sections that may require more focused curing.

The station also incorporates intelligent monitoring designed to make operation safer and more dependable. Its full-process monitoring system can provide alerts for issues such as an open cover, low voltage, blocked outlet, lack of liquid inflow, and other liquid-flow problems. A transparent flip-open lid makes it easy to access the working area and observe the process, while the minimalist touch-button control panel keeps everyday operation straightforward. Overall, the Anycubic Wash & Cure 3 Max is built for users who have outgrown smaller resin post-processing stations and need significantly more capacity. Its 15.1L curing capacity, 305 x 165 x 300 mm cleaning volume, 20L cleaning container, automated wash-and-cure workflow, 360 spray cleaning, 20 x 405nm UV LEDs, gooseneck curing light, and intelligent error monitoring make it a powerful solution for large-format and batch resin printing. Measuring approximately 43.4 x 43.4 x 55.6 cm and weighing 13.5 kg, it is a substantial piece of equipment intended for dedicated workshops, studios, and professional resin-printing environments.

Features

• Ultra-large 15.1L maximum curing volume
• Maximum wash dimensions of 305 x 165 x 300 mm
• One-click fully automated washing and curing cycle
• Three customisable modes: Auto (13-42.5 mins), Wash (1039.5 mins), and Cure (0.530 mins)
• 360 spray cleaning
• Curing platform with 20 x 405nm LEDs plus gooseneck light
• Full-process intelligent monitoring with error alerts
• Transparent flip-open lid and minimalistic touch-button control panel for easy access and operation

Specifications

Package Contents

• 1x Anycubic Wash & Cure 3 Max Tray
• 1x Detergent Drum
• 1x Waste Liquid Drum
• 1x Clean Liquid Drum
• 4x Water Tubes
• 1x Wrench Set
• 1x Power Adapter and Power Cord
• 1x User Manual
