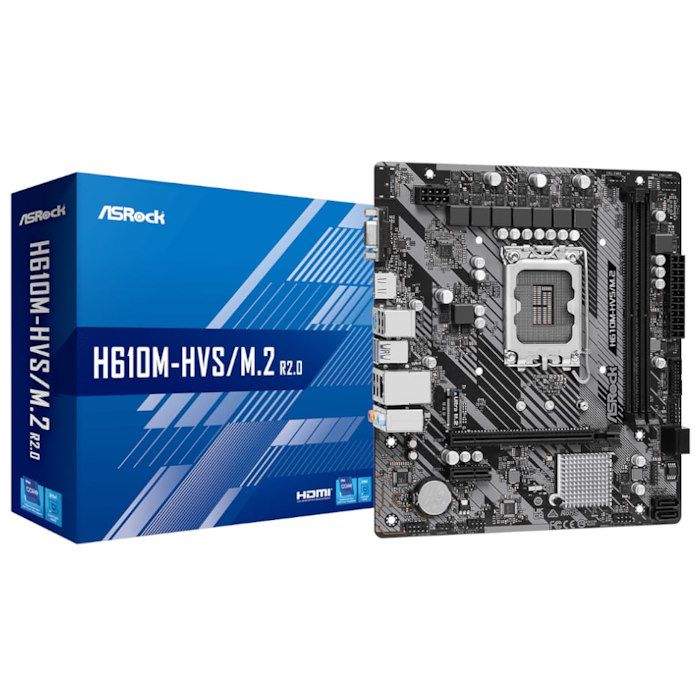

ASRock H610M-Hvs/M.2 R2.0 Intel Lga 1700 M-Atx Motherboard
R1,409.00
SKU
H610M-HVS-M2R2
6+1+1 phase power design
2 x ddr4 dimms
Supports dual channel, up to 3200
1 pcie 4.0 x16, 1 pcie 3.0 x1
Description
Introducing the ASRock H610M-Hvs/M.2 R2.0 Intel Lga 1700 M-Atx Motherboard. The ASRock H610M-HVS/M.2 R2.0 Intel LGA 1700 m-ATX Motherboard is a reliable and feature-packed solution for building a powerful PC. Designed to support 14th, 13th, and 12th Gen Intel Core processors on the LGA 1700 socket, this motherboard ensures excellent compatibility and performance for a variety of computing tasks. Its 6+1+1 Phase Power Design ensures stable and efficient power delivery, making it ideal for everyday use and demanding workloads.
With 2 DDR4 DIMM slots, the H610M-HVS/M.2 R2.0 supports up to 64GB of dual-channel memory, with speeds up to 3200MHz, ensuring fast and efficient multitasking. The inclusion of 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot provides flexibility for adding high-speed GPUs and other expansion cards. Storage needs are well-handled with 4 SATA3 ports and an Ultra M.2 slot (PCIe Gen3 x4), offering robust options for both traditional and high-speed storage devices.
For connectivity and multimedia, this m-ATX motherboard features HDMI and D-Sub outputs, allowing support for multiple displays. Audio performance is enhanced by the Realtek ALC897 7.1 CH HD Audio Codec, delivering rich and immersive sound. Additionally, the board includes 4 USB 3.2 Gen1 ports (2 rear, 2 front) and 6 USB 2.0 ports (4 rear, 2 front) for convenient connectivity, along with Realtek Gigabit LAN for fast and stable networking. Compact yet versatile, the ASRock H610M-HVS/M.2 R2.0 is a great choice for a wide range of PC builds.
Features
- 6+1+1 phase power design
- 2 x ddr4 dimms
- Supports dual channel, up to 3200
- 1 pcie 4.0 x16, 1 pcie 3.0 x1
- Graphics output options: hdmi, d-sub
- Realtek alc897 7.1 ch hd audio codec
- 4 x sata3
- 1 x ultra m.2 (pcie gen3 x4)
- 4 x usb 3.2 gen1 (2 rear, 2 front)
- 6 x usb 2.0 (4 rear, 2 front)
- Realtek gigabit lan
- Supports 14th, 13th & 12th gen Intel Core processors (lga1700)
Specifications
| Socket | Intel LGA 1700 |
| Cpu (Max Support) | Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) |
| Chipset | Intel H610 |
| Ddr4 Memory | Supports DDR4 non-ECC, un-buffered memory up to 3200 Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 |
| Memory Channel | Dual |
| Dimm Slots | 2 |
| Max Memory (Gb) | 64 |
| Pci-E X16 | 1 |
| Pci-E Gen | Gen3 |
| Pci-E X1 | 1 |
| Sataiii | 4 |
| M.2 Slot | 1 |
| Tpm (Header) | 1 |
| Lan | Realtek RTL8111H Gigabit LAN |
| Usb 3.2 Ports (Front) | 2 (Gen 1, Type A) |
| Usb 3.2 Ports (Rear) | 2 (Gen 1, Type A) |
| Usb 2.0 Ports (Front) | 2 (Type A) |
| Usb 2.0 Ports (Rear) | 4 (Type A) |
| Serial Ports(Front) | 1 |
| Audio Ports (Rear) | Realtek ALC897 Audio Codec (7.1 CH HD Audio) |
| D-Sub Port | 1 |
| Hdmi | 1 |
| Form Factor | M-ATX |
| Operating System | Support for Windows 10 64-bit / 11 64-bit |
| Weight | 813 g |
| Dimensions | 24 x 6 x 27 cm |
| Brand | ASRock |
| Warranty | 36 Months |
| Colour | Black |
Package Contents
- 1x Asrock h610m-hvs/m.2 r2.0 intel lga 1700 m-atx motherboard black
