Atomos Ninja TX 5″ HDMI/12G-SDI And Wi-Fi Monitor-Recorder

Manufacturer's Website

Description

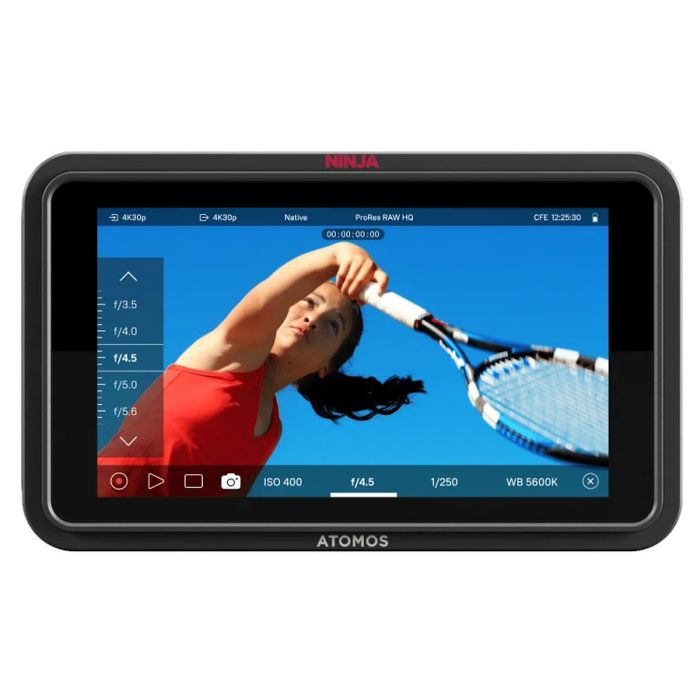

Introducing the Atomos Ninja TX 5 HDMI/12G-SDI And Wi-Fi Monitor-Recorder. A powerful all-in-one monitoring and recording solution designed to meet the demands of professional filmmakers, videographers, and content creators. Featuring a vibrant 5.2-inch Full HD touchscreen with an impressive brightness of 1500 nits, the Ninja TX delivers exceptional visibility even in bright outdoor conditions. Its compact aluminium and ABS plastic construction, combined with a lightweight 400g design, makes it ideal for handheld, gimbal, studio, and field production setups. The actively controlled cooling system ensures quieter operation while maintaining optimal performance during extended recording sessions.

Designed for maximum versatility, the Ninja TX supports HDMI 2.0, 12G-SDI, Wi-Fi 6E, and dual USB-C connectivity, allowing seamless integration with a wide range of professional cameras and production workflows. It records in industry-standard formats including Apple ProRes, ProRes RAW, Avid DNxHD, DNxHR, and H.265, with support for recording resolutions up to 6K at 60fps and 8K at 30fps in RAW. Users can capture footage directly to Atomos-certified CFexpress Type B media or compatible USB-C storage devices, providing flexible recording options for projects of any size. Camera control via USB-C also enables start/stop recording, ISO, shutter, aperture, white balance adjustments, and touch-to-focus functionality on supported camera models. The Ninja TX offers an extensive suite of professional monitoring tools to help creators achieve accurate exposure, focus, and colour reproduction. Features such as waveform monitoring, RGB parade, vectorscope, focus peaking, false colour, EL Zone exposure, zebras, anamorphic desqueeze, onion skin overlays, safe area guides, and custom frame guides provide precise monitoring for every stage of production. The monitor supports a wide variety of Log gamma profiles and colour gamuts from leading camera manufacturers including Sony, Canon, ARRI, Panasonic, RED, Nikon, Fujifilm, and JVC, while 3D LUT support enables accurate colour preview and downstream LUT output for HDR and SDR workflows.

Built for today's connected production environments, the Atomos Ninja TX simplifies collaborative workflows through direct camera-to-cloud integration. Footage can be progressively uploaded to ATOMOSphere, Adobe Frame.io, or Dropbox, enabling faster review, editing, and content delivery from virtually anywhere. The device includes 20GB of complimentary ATOMOSphere cloud storage, supports NDI 6 streaming, over-the-air firmware updates, Bluetooth and AirGlu RF timecode synchronisation, and Wi-Fi 6E networking for reliable wireless connectivity. Flexible power options, including NP-F batteries, USB-C Power Delivery, AC adapters, and optional D-Tap support, ensure dependable operation whether shooting in the studio or on location. Combining advanced recording capabilities, professional monitoring tools, cloud connectivity, and exceptional portability, the Atomos Ninja TX is an ideal solution for modern video production workflows.

Please Note: Memory Card Not Included.

Features

• Camera control & touch to focus on supported cameras
• Record in Apple ProRes, Avid DNx or H.265
• Quieter, cooler temperature while using
• Capture to CFexpress Type B or USB-C storage
• Super-bright, 1500nit 5-inch touchscreen display
• HDMI 2.0, 12G-SDI & Wi-Fi 6E input and output
• Direct upload to ATOMOSphere, Frame.io, Dropbox
• Streaming via NDI 6
• Timecode sync over RF or Bluetooth
• Powered by USB-C, NP-F battery or AC adaptor
• Get 20GB cloud storage FREE with ATOMOSphere
• Over the air (OTA) firmware updates

Specifications

Package Contents

• 1x Ninja TX monitor-recorder
• 1x USB-C locking cable adaptor
• 1x HDMI locking cable adaptor
• 1x Wi-Fi antenna
• 5x antenna tips (black, white, yellow, green, red)
• 1x AirGlu antenna
• 1x Antenna caps
• 1x USB-C locking cable (45cm)
• 1x Quick Start Guide
