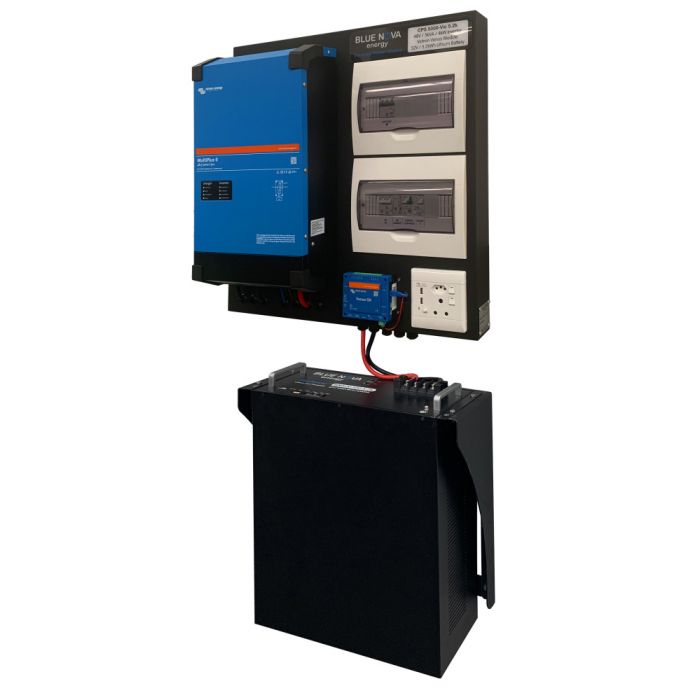

Blue Nova Energy CPS5000-Vic Compact Power Station - 4kW
R107,699.00
SKU
CPS5000Vic52k
Shipping restrictions apply.
Manufacturer's Website
Description
The Blue Nova Energy CPS5000-Vic Compact Power Station - 4kW is an 4000W (5kVA) Pure Sine Wave Inverter, Victron Venus Module, 5200Wh (5.2kWh) RacPower LithiumIon Phosphate Battery.
CPS5000 Datasheet
CPS5000-Vic User Manual
Features
- 5kVa / 4kW pure sine wave inverter
- 5.2kWh Racpower lifepo4 batteries
- Victron Venus module
- Integrated distribution board
- Pre-configured for ups applications
- Solar-configurable via inverter UI
- Ultra-reliable lithium iron phosphate technology.
- High performance:
- Power output 5.2kw (continuous)
- Fully rechargeable in 2 hours.
- Robust & durable:
- Can be discharged to 100% DoD.
- Minimum cycle life > 2500 cycles.
- Safe & secure:
- Over-charge, over-discharge & short-circuit protection.
- Non-combustible & 100% recyclable
Specifications
| Physical Attributes | |
| Main/Top Unit | |
| Dimensions | (W x H x D) 69 x 23 x 64cm |
| Weight | 38kg |
| Batteries & Bracket | |
| Dimensions (W X H X D) | 52 x 38 x 54cm |
| Weight | 56kg |
| Inverter Specifics: Victron Multiplus Ii 5Kva | |
| Power | |
| Rated Power 25C | 5000VA 4000W |
| Input | |
| Dc Input Voltage Range | 38 - 66VDC |
| Ac Input Voltage Range | 187 - 265 VAC |
| Frequency Range | 50Hz / 60Hz (auto-sensing) |
| Output | |
| Ac Output Voltage & Frequency | 230 VAC 2% 50Hz 0.1% |
| Peak Power | 9000 W |
| Efficiency (Peak) | 96% |
| Waveform | Pure Sine Wave |
| Charger | |
| Max. Solar Charge Current | (requires MPPT) |
| Max. Ac Charge Current | 70A |
| Environmental | |
| Humidity | Max. 95% Relative Humidity (non-condensing) |
| Operating Temperature Range | -40C - 65C |
| Battery Specifics: Racpower Bn52V-100-5.2K Du | |
| General Specifications | |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 51.2V |
| Ah Rating | 100Ah C3, 25C |
| Installed Capacity | 5 120Wh |
| Internal Resistance | 30m 1kHz AC |
| Voltage | |
| Operating Voltage Range | 46.0V - 56.2V |
| Bulk Voltage (Max.) | 56.2V 0.3V |
| Float Voltage (Recommended) | 55.5V 0.3V |
| Low-Voltage (Min.) | 46V |
| Current | |
| Charge Current (Max.) | 60A continuous / < 60A recommended |
| Discharge Current (Max.) | 100A continuous |
| Self-Discharge Rate | Residual Capacity 3% /Month 15% /Year, Recover Capacity: 1.5% /Month 8% /Year |
| Environmental Requirements | |
| Operating Temperature Range | Charge: 0C 45C, Discharge: 20C 60C |
| Recommended Operating Environment | Temp. range: 15 35C Humidity: 45 75%RH |
| Storage Environment (Stored 1 Month) | Temp. range: 20 35C Humidity: 45 75%RH |
| Storage Environment (Stored 3 Months) | Temp. range: 10 45C Humidity: 5 75%RH |
| Physical Attributes | |
| Dimensions Main Enclosure | 442mm x 520mm x 178mm |
| Dimensions Front Plate | 483mm x 178mm (L x H) |
| Net Weight | 55.0kg (unboxed, no accessories) |
| Serial Communication | CAN and RS485 |
| Free Shipping | No |
|---|
