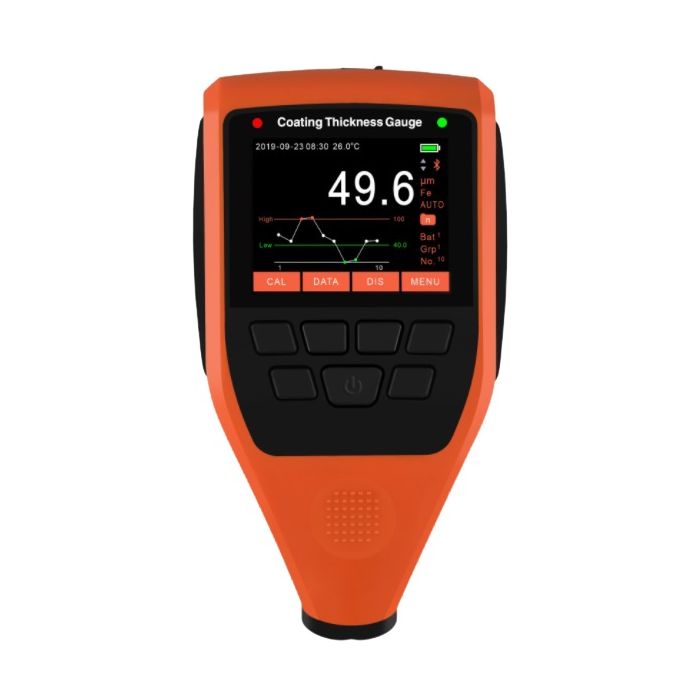

Coating Thickness Gauge With Bluetooth And App Function

R5,799.00
SKU
EC777

2.4 inch color screen With bt and app function Car or general mode

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed



Description

The Coating Thickness Gauge With Bluetooth And App Function supports non-destructive measurement of metal surface non-conductive coating, as well as ferromagnetic metal (such as iron, nickel, cobalt) surface non-ferromagnetic metal coating thickness, specific uses include measuring iron, stainless steel surface paint or galvanized layer thickness, measuring aluminum, copper surface paint plastic film thickness.



Features

  • 2.4 inch color screen
  • With bt and app function
  • Car or general mode
  • Measuring range is 02000m
  • High accuracy 2%
  • High speed 2 times/s
  • External probe is optional



Specifications

Probe Type Internal probe
Measuring Principle Fe: Magnetic induction NFe: Eddy currents
Measuring Range 02000m
Accuracy (2%+1m)
Resolution 0.1m(0100m) 1m(>100m)
Unit m, mm, mils, inch
Calibration Zero calibration and multi-point calibration
Statistic Number of readings, Max, Min, Mean, sample standard deviation, coefficient of Variation, Number Below Limit, Number Above Limit
Chart Curve, bar chart or trend chart
Storage 101310 measurement data
Probe Trigger Mode Mechanical trigger, trigger force: 0.40.8N
Minimum Curvature Radius Convex 5mm Concave 25mm
Minimum Measuring Area Diameter 15mm
Minimum Thickness Of Substrate Fe: 0.20mm NFe: 0.03mm
Maximum Measuring Rate 2 readings/s
Display 2.4 inch color screen
Bluetooth & App Support
Operation Environment Temperature: -10+50 C Humidity: 2090%RH (Non-condensation)
Storage Environment Temperature: -20+60C Humidity: 2090%RH (Non-condensation)
Power Supply 2 pcs 1.5V AA alkaline batteries 2 pcs 1.2V AA rechargeable batteries
Protection Class IP40
Size 146x76x32mm
Material ABS
Weight About 137g (No battery)
