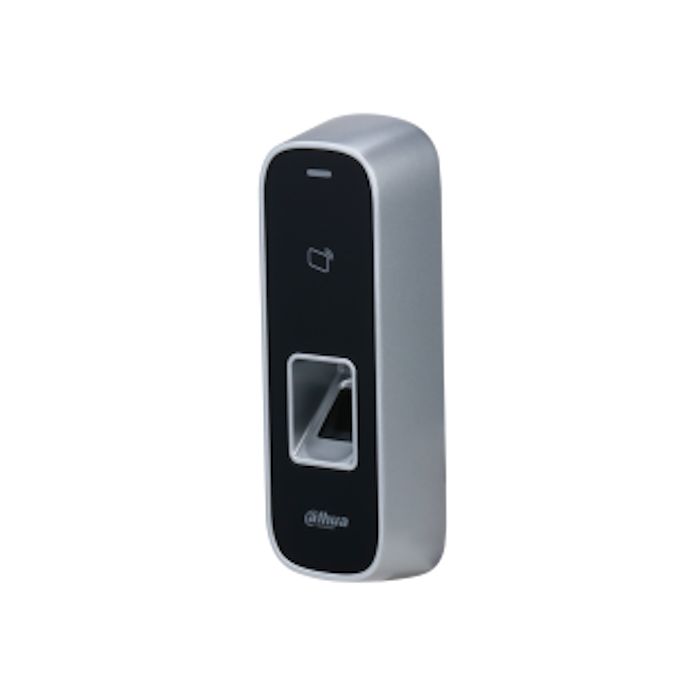

Dahua ASI1202M Fingerprint Access Controller Terminal
R2,769.00
SKU
DHI-ASI1202M
Ip65, ik10 rated
3000 fingerprint capacity
1cm-3cm card reading distance
13.56mhz card reading frequency
Description
Introducing the Dahua ASI1202M Fingerprint Access Controller Terminal. The Dahua ASI1202M Fingerprint Access Controller Terminal is a robust and versatile access control solution. Constructed from a zinc alloy plate, it's built to withstand harsh environments and provides a secure, durable platform for access control. This terminal offers flexibility with its support for various unlocking methods, including card, fingerprint, and a combination of both. The 13.56MHz card reading frequency, with a distance of 1cm to 3cm, ensures reliable card recognition, while the dual protocol support (RS-485 and Wiegand) allows for seamless integration with existing security systems.
This device boasts an IP65 rating, ensuring its resistance to dust and water ingress, and an IK10 rating, signifying its resilience to physical impacts. This makes it suitable for both indoor and outdoor installations. Its fingerprint capacity of 3,000 users provides ample storage for a substantial user base. Beyond basic access control, the ASI1202M offers a range of alarms, including duress, tamper, intrusion, door contact timeout, and illegal card exceeding time alarms. This comprehensive alarm system allows for proactive monitoring and rapid response to potential security breaches.
The built-in support for various card types-guest, patrol, VIP, general, and disabled-provides the flexibility to cater to different user needs and security protocols within a single system. This ensures that the access control system can be tailored to meet specific requirements, from general access to highly restricted areas. The inclusion of these alarm systems and card types underlines the device's commitment to comprehensive security and user-friendliness.
Features
- Ip65, ik10 rated
- 3000 fingerprint capacity
- 1cm-3cm card reading distance
- 13.56mhz card reading frequency
- Support both rs-485 protocol and wiegand protocol
- Support card unlock, fingerprint unlock, and card & fingerprint unlock
Specifications
| Brand | Dahua |
| System | |
| Main Processor | Embedded processor |
| Network Protocol | IPv4, TCP |
| Osdp Protocol | Yes |
| Sdk And Api | Yes |
| Basic | |
| Appearance | All-in-one |
| Buzzer | Yes |
| Casing | Zinc alloy |
| Function | |
| Unlock Mode | Fingerprint/Card unlock |
| Card Reading Type | IC card |
| Period List | 128 |
| Holiday Period | 128 |
| Network Update | Yes |
| First Card Unlock | Yes |
| Remote Verification | Yes |
| Blocklist/Allowlist | Yes |
| Peripheral Card Reader | 1 RS-485, 1 Wiegand |
| Multiple Authentication | Support card/fingerprint unlock |
| Real-Time Surveillance | Yes |
| Group Combination | Yes |
| Register | Yes |
| Performance | |
| Card Reading Distance | 1cm-3cm |
| Fingerprint Sensor Type | Optical |
| Fingerprint Verification | 1:N |
| Fingerprint Comparison Time | -/<1.5s |
| Fingerprint Recognition Time | -/<0.5s |
| User | |
| User (Card) Type | General user/VIP/patrol user/guest/blocklist user/special user |
| Capacity | |
| User Capacity | 30,000 |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 30,000 |
| Record Capacity | 150,000 |
| Port | |
| Rs-485 | 1 |
| Wiegand | 1 (input and output ports are the same) |
| Usb | 1 USB2.0 port |
| Network | 1 RJ-45, 10Mbps/100Mbps self-adaptive |
| Alarm Input | 1 (digital quantity) |
| Alarm Output | 1 (relay) |
| Alarm Linkage | Yes |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Anti-Passback | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
| Duress Fingerprint | Yes |
| General | |
| Power Adapter | Optional |
| Power Supply | 12V DC 1A |
| Protection Grade | IP65 (Apply silica gel to gaps, for details, see the quick start guide.) |
| IK10 | |
| Power Consumption | -/< 1.8W (standby), -/< 3W (working) |
| Product Dimensions | 54.8 mm x 159.2 mm x 35.0 mm (2.16" x 6.27" x 1.38") |
| Box Dimensions | 206 mm x 106 mm x9 7mm (8.11" x 4.17" x 3.82") (Product box) |
| 553mm x 428mm x 220mm (21.77" x 16.85" x 8.66") (Protective box) | |
| Operating Temperature | -30C to +50C (-22F to +122F) |
| Operating Humidity | 5%RH-95%RH (non-condensing) |
| Operating Altitude | 0m-1300m (0ft-4265.09ft) |
| Operating Environment | Outdoor |
| Net Weight | 0.7kg (1.54 lb) |
| Gross Weight | 0.79kg (1.74 lb) |
| Accessory | Bracket |
| Installation | Surface mount |
| Certifications | CE |
| FCC |
| Free Shipping | No |
|---|
