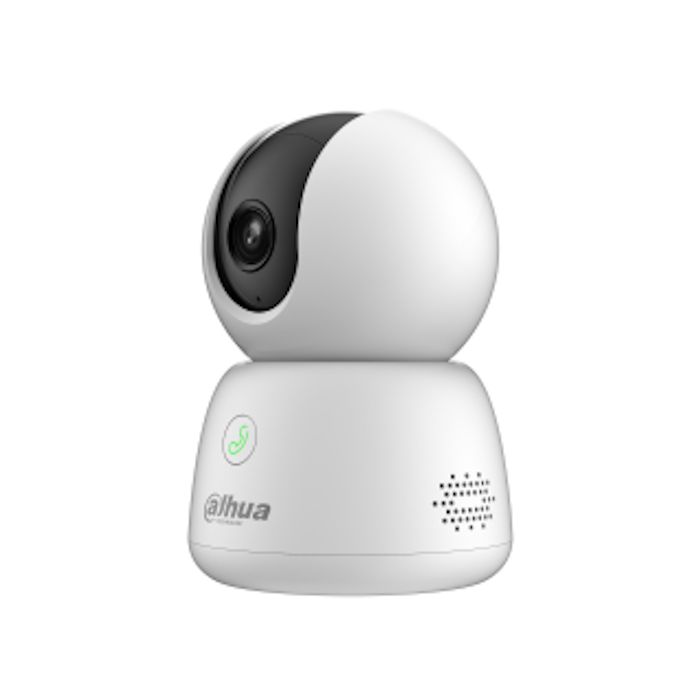

Dahua H5B Indoor Fixed-Focal Wi-Fi Pan & Tilt Network Camera - 5Mp, 2880x1620
5MP high definition
Advance night vision
Pan and tilt for 360 degree view
AI human and pet detection


Description
Introducing the Dahua H5B Indoor Fixed-Focal Wi-Fi Pan & Tilt Network Camera - 5Mp, 2880x1620. A robust surveillance solution designed for effective monitoring in small to medium-sized environments, such as retail stores. Featuring a high-definition 5MP image sensor with a maximum resolution of 2880 x 1620, this camera captures detailed images for clear visibility in various conditions. The H5B model enables extensive coverage with its pan capability of 0 to 350 and tilt range of -5 to 80, allowing for near-complete monitoring of the surrounding area.
Equipped with advanced night vision that illuminates up to 10 meters (32.81 feet), the camera ensures reliable performance in low-light conditions. Its intelligent features include AI human detection and pet detection, which facilitate accurate identification and tracking of subjects, enhancing the effectiveness of security monitoring. Functionality such as one-click proactive call, preset patrols, and auto tracking allows for quick interactions and comprehensive surveillance.
In terms of connectivity, the H5B can connect via Wi-Fi (supporting IEEE 802.11b/g/n/ax standards) or through a wired network port (RJ-45, 10/100 Base-T). This flexibility allows for easy integration into existing network infrastructure. The camera employs H.265 video compression technology, which optimizes bandwidth usage while providing clear video quality, with bit rates adjustable from 40 kbps to 4096 kbps. Local storage is supported via a micro SD card with a capacity of up to 256 GB, alongside management through the DMSS software and mobile apps available for both iOS and Android platforms.
The H5B camera also features built-in audio capabilities with a microphone and speaker, using G.711a compression for efficient audio streaming. It measures 84 mm x 123.8 mm (3.31" x 4.87") and weighs 206.5 grams (0.46 lb), making it a lightweight and compact option that blends seamlessly into various environments. With an operating temperature range of -10C to +45C (+14F to +113F) and humidity tolerance of up to 95%, the H5B is designed to perform effectively across a range of conditions, providing reliable surveillance for your security needs.
Features
- 5MP high definition
- Advance night vision
- Pan and tilt for 360 degree view
- AI human and pet detection
- One-Click proactive call
- Preset Patrol
Specifications
| Camera | |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2880 (H) x 1620 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s-1/100,000 s |
| Illumination Distance | Up to 10 m (32.81 ft) (IR) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 1 (IR LED) |
| Angle Adjustment | |
| Tilt | -5 to 80 |
| Pan | 0 to 350 |
| Lens | |
| Max. Aperture | F2.0 |
| Field Of View | |
| 2.8Mm | |
| H | 99 |
| V | 55 |
| D | 115 |
| 3.6Mm | |
| H | 74 |
| V | 41 |
| D | 88 |
| Intelligence | |
| Human Detection | Yes |
| Video | |
| Video Compression | H.265 |
| Video Frame Rate | |
| Main Stream | 2880 x 1620 at (1-25/30 fps) |
| Sub Stream | 640 x 360 at (1-25/30 fps) |
| Resolution | 5M (2880 x 1620), nHD (640 x 360) |
| Video Bit Rate | |
| H.265 | 40 kbps-4096 kbps |
| Day/Night | Auto(ICR)/Colour/B/W |
| Wdr | DWDR |
| Motion Detection | Yes |
| Image Rotation | 0/180 |
| Audio | |
| Built-In Mic | Yes |
| Built-In Speaker | Yes |
| Audio Compression | G.711a |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4 G, -/<20dBm at 2400-2483.5MHz |
| Storage | Micro SD card (up to 256 GB) |
| Management Software | DMSS |
| Mobile Client | iOS, Android |
| Certification | |
| Certifications | CE |
| Power | |
| Power Supply | 5 VDC, 1 A |
| Power Consumption | |
| Basic | 1.9 W |
| Max. | 3.8 W (live + IR + PT rotation) |
| Environment | |
| Operating Temperature | -10 C to +45 C (+14 F to + 113 F) |
| Operating Humidity | -/<95% |
| Structure | |
| Casing Material | Plastic |
| Product Dimensions | 84 mm x 123.8 mm (3.31" x 4.87") |
| Net Weight | 206.5 g (0.46 lb) |
| Free Shipping | No |
|---|
