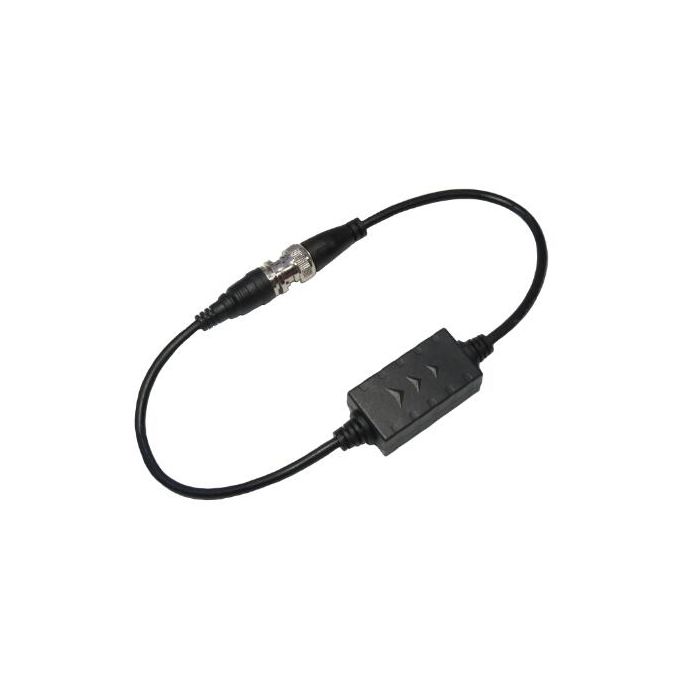

Dahua HD Video Isolator
R199.00
SKU
DHPFM791
To solve the HDCVI image interference caused by ground loops effectively
Apply to indoor or in junction box
Working Temperature: -20~55C
Description
The Dahua HD Video Isolator is designed to solve the HDCVI image interference caused by ground loops effectively. It has a working temperature of -20~55C and can be applied to indoor or in junction box.
Features
- To solve the HDCVI image interference caused by ground loops effectively
- Apply to indoor or in junction box
- Working Temperature: -20~55C
Specifications
| Properties | |
| Insertion loss | 0.5dB |
| Frequency response | 0-65MHz |
| Input impedance | 75 |
| Out impedance | 75 |
| Isolation voltage | 800V(min.) |
| Isolation resistance | 100M |
| Protection | |
| ESD protection | Contact discharge: 600V |
| Air discharge: 8000V | |
| Per IEC61000-4-2 | |
| Surge protection | 4KV 10/700us, per IEC61000-4-5 |
| Reliability | |
| MTBF | >20000h |
| Physical Properties | |
| Dimension(LWH) | Body: 42mmx22.5mmx16mm |
| Length: 400mm | |
| N.W. | 38g |
| Environmental | |
| Working temperature | -20~55C |
| Storage temperature | -20~55C |
| Relative humidity | 0~95% |
