Dahua IR Fixed-Focal Wi-Fi Dome Network Camera - 4MP, 2560x1440

R1,369.00
SKU
DH-IPC-HDBW1430DE-SW

Built-in IR led
Supports max. 256 g micro sd card
12 VDC power supply
IP67, ik10 protection

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website





Description

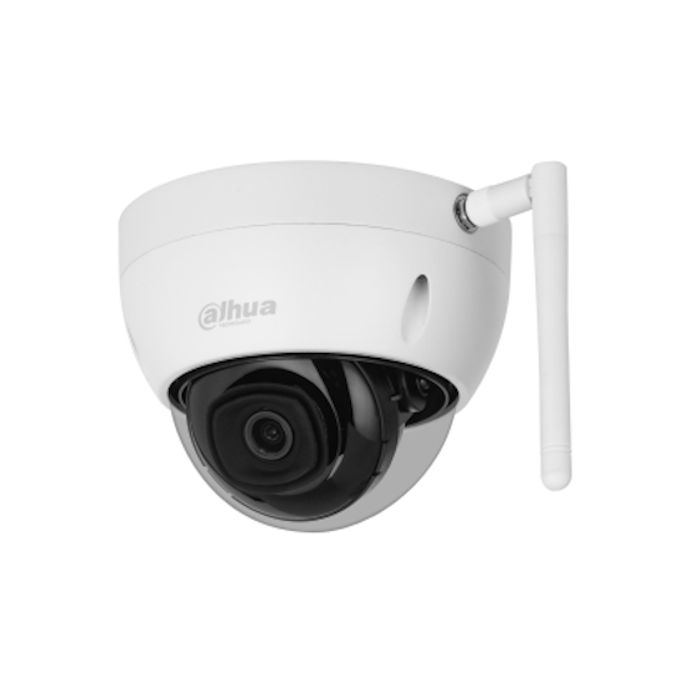

Introducing the Dahua IR Fixed-Focal Wi-Fi Dome Network Camera - 4MP, 2560x1440. A high-performance surveillance solution designed to deliver exceptional image quality and reliability. Equipped with a 4MP 1/3" CMOS image sensor, it captures stunning video at a maximum resolution of 2560 x 1440 pixels at 20 frames per second. Additionally, it supports up to 3MP resolution at 25/30 fps, ensuring clear, detailed footage for effective monitoring. The camera excels in low-light conditions, with a minimum illumination of 0.03 Lux in colour and 0.003 Lux in black and white, enhanced by built-in IR LEDs that can illuminate areas up to 30 meters (98.43 feet) in total darkness.

Designed for both indoor and outdoor use, the camera boasts an IP67 rating for water and dust resistance and IK10 protection against vandalism, ensuring durability in challenging environments. Its versatile pan (0-355), tilt (0-75), and rotation (0-355) capabilities allow for comprehensive coverage of any area. The camera supports multiple lens options, including 2.8mm and 3.6mm focal lengths, providing varying fields of view to suit different monitoring needs.

Advanced features such as H.265 compression and Smart H.264+ enable effective storage management and bandwidth optimization, making this camera an efficient choice for both home and business security applications. The device also includes intelligent monitoring functions, such as motion detection, video tampering alerts, and abnormality detection features, ensuring that users are notified of potential security threats. Coupled with robust networking capabilities, including RJ-45 and Wi-Fi support, the Dahua IR Dome Camera is a reliable and flexible solution for modern surveillance requirements.



Features

  • Built-in IR led
  • Supports max. 256 g micro sd card
  • 12 VDC power supply
  • IP67, ik10 protection
  • H.265 codec, high compression rate, ultra-low bit rate
  • DWDR, 3d nr, blc, digital watermarking, applicable to various monitoring scenes
  • 4-mp 1/3" cmos image sensor, low luminance, and high definition image
  • Outputs max. 4 mp (2560 x 1440) at 20 fps, and max. supports 3 mp (2304 x 1296) at 25/30 fps
  • Smart h.264 +/h.265+, flexible coding, applicable to various band width and storage environments
  • Abnormality detection: motion detection, video tampering, no sd card, sd card full, sd card error, network disconnection, ip conflict, illegal access



Specifications

Camera
Image Sensor 1/3" CMOS
Max. Resolution 2560 (H) x 1440 (V)
Rom 16 MB
Ram 64 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 S-1/100,000 S
Min. Illumination 0.03 Lux at F2.0 (Colour, 30 IRE)
  0.003 Lux at F2.0 (B/W, 30 IRE)
  0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 30 m (98.43 ft) (IR LED)
Illuminator On/Off Control Auto, Manual
Illuminator Number 3 (IR LED)
Pan/Tilt/Rotation Range
Pan 0-355
Tilt 0-75
Rotation 0-355
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm, 3.6 mm
Max. Aperture F2.0
Field Of View
2.8 Mm:
Horizontal 90
Vertical 50
Diagonal 107
3.6 Mm:
Horizontal 76
Vertical 40
Diagonal 92
Iris Control Fixed
Close Focus Distance
2.8 Mm 1.0 m (3.28 ft)
3.6 Mm 1.4 m (4.59 ft)
Video
Video Compression H.264B, H.264, H.264H, H.265
Smart Codec Smart H.265+, Smart H.264+
Video Frame Rate
Main Stream 2560 x 1440 at (1-20 fps)
Sub Stream 640 x 480 at (1-25 fps)
  640 x 480 at (1-30 fps)
Stream Capability 2 streams
Resolution 2560 x 1440 (2560 x 1440), 2304 x 1296 (2304 x 1296), 1080p (1920 x 1080), 1.3M(1280 x 960), 720p (1280 x 720)
Bit Rate Control CBR/VBR
Video Bit Rate
H264 24 kbps-4096 kbps
H265 9 kbps-4096 kbps
Day/Night Auto (ICR)/Color/B/W
Blc Yes
Wdr DWDR
White Balance Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region Of Interest (Roi) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0/180
Mirror Yes
Alarm
Alarm Event No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering
Network
Network Port RJ-45 (10/100 Base-T)
Wi-Fi IEEE802.11b/g/n 2.4-2.4835 GHz
Wireless Range Up to 80 m (The performance varies based on actual environment)
Sdk And Api Yes
Cyber Security Video encrypton, confguraton encrypton, Digest, WSSE, account lockout, security logs, generaton and importng of X.509 certfcaton, HTTPS, trusted boot, trusted executon, trusted upgrade
Network Protocol IPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, Multicast, RTMP
Interoperability ONVIF (Profile S/Profile G), CGI, P2P
User/Host 6 (Total bandwidth: 36 M)
Storage Micro SD card (support max. 256 GB, sold separately)
Browser IE
  Chrome
  Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Client iOS, Android
Certification
Certifications
Ce-Lvd EN62368-1
Ce-Emc Electromagnetic Compatibility Directive 2014/30/EU
Ce-Red Radio Equipment Directive 2014/53/EU
Fcc 47 CFR FCC Part 15, Subpart B
Fcc Id FCC PART 15C
Power
Power Supply 12 VDC
Power Consumption
Basic 2 W (12 VDC)
Max. (H.265+Ir Intensity) 4.9 W (12 VDC)
Environment
Operating Temperature -40 C to +60 C (-40 F to +140 F)
Operating Humidity -/<95%
Storage Temperature -30 C to +60 C (-22 F to +140 F)
Protection IP67, IK10
Structure
Casing Metal
Product Dimensions 110.7 mm x 88.7 mm (4.33" x 3.49")
Net Weight 414 g (0.91 lb)
Gross Weight 592 g (1.31 lb)
