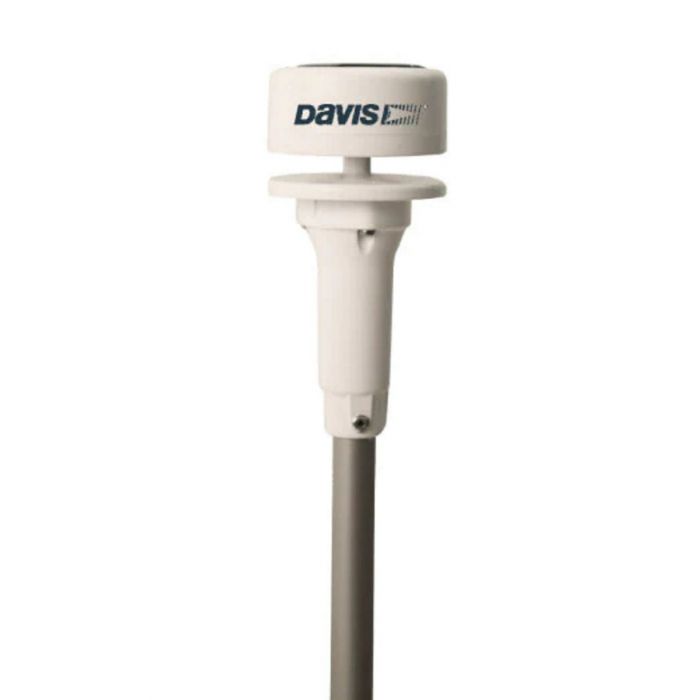

Davis Sonic Anemometer

R19,999.00
SKU
6415

  • Uses sonic pulses to detect air movement
  • Accurately measures wind direction and speed with no moving parts
  • Includes 40’/12m cable
Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed



Description

Harness the power of cutting-edge technology with the Davis Sonic Anemometer, designed for seamless integration with a Sensor Transmitter, EnviroMonitor Node, or as a replacement anemometer for wireless or cabled Vantage Pro2 systems. This advanced anemometer elevates wind measurement to new heights, providing accurate and reliable data without the need for moving parts.

Expand the capabilities of your Vantage Pro2 or Vantage Vue system by adding an additional wind station with a Sensor Transmitter and WeatherLink Live. With the Davis Sonic Anemometer, you can access comprehensive wind data, enhancing your weather monitoring experience and gaining valuable insights into local wind patterns.

The Davis Sonic Anemometer comes with a 40-foot (12 meters) cable, allowing you to position the anemometer strategically for precise wind measurements. Whether you're a weather enthusiast or a professional meteorologist, this additional length ensures flexible siting options for optimal data collection. Experience unparalleled accuracy in wind measurement as the Davis Sonic Anemometer uses sonic pulses to detect air movement. With no moving parts, you can trust that this anemometer will provide consistent and reliable readings, even in challenging weather conditions.

Track wind speeds ranging from 0 to an impressive 89 mph (144 kph), making the Davis Sonic Anemometer suitable for various weather monitoring applications. Whether it's gentle breezes or strong gales, this anemometer captures wind data with precision, empowering you with crucial weather information. The Davis Sonic Anemometer offers state-of-the-art wind measurement capabilities, perfect for enhancing your weather monitoring setup. Whether you're seeking to expand your existing Vantage Pro2 or Vantage Vue system or need a reliable replacement anemometer, this cutting-edge device delivers unparalleled performance with its sonic pulse technology. Embrace the power of advanced wind measurement and stay informed about local wind conditions like never before.



Features

  • Use with a Sensor Transmitter, EnviroMonitor Node, or as a replacement anemometer for wireless or cabled Vantage Pro2
  • Add an additional wind station to your Vantage Pro2 or Vantage Vue system with a Sensor Transmitter and WeatherLink Live
  • Includes 40/12m cable
  • Accurately measures wind direction and speed with no moving parts
  • Captures wind speeds from 0 89 mph/144 kph
  • Uses sonic pulses to detect air movement



Specifications

General
Operating Temperature +5F to +131F / 15C to +55C
Sensor Type Ultrasonic sensor
Attached Cable Length 40' / 12m
Cable Type 4-conductor, 26 AWG
Connector Modular connector (RJ-11)
Maximum Cable Length 250' / 76m
Material
Control Head Polyacetal
Anemometer Arm Clear-anodized aluminum
Dimensions 15.0" x 2.4" / 380mm x 60mm (Length x Width x Height)
Weight 7 oz. / 200g
Sensor Output
Wind Direction
Display Resolution 16 points (22.5) on compass rose, 1 in numeric display
Accuracy 2 degrees at wind speeds 7 mph (6 kts, 110 km/h, 3 m/s) / 4 degrees at wind speeds < 7 mph (6 kts, 110 km/h, 3 m/s)
Wind Speed
Resolution and Units Measured in 1 mph. Other units are converted from mph and rounded to nearest 1 km/h, 0.1 m/s, or 1 knot
Range 0 to 89 mph, 0 to 78 knots, 0 to 40 m/s, 0 to 144 km/h
Accuracy 2 mph (2 kts, 3 km/h, 1 m/s) or 4%, whichever is greater
Maximum Cable Length 250' (76 m). Maximum wind speed reading decreases as length of cable increases
