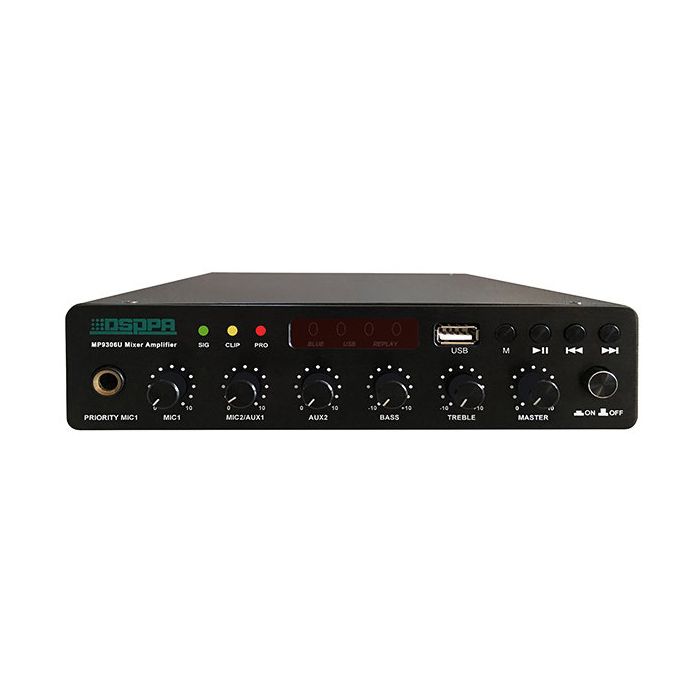

Dsppa Mp9306U Ultra-Thin Digital Mixer Amplifier - 60W
R6,099.00
SKU
DSPPMP9306U
Bluetooth, USB and line modes
100 VRS prior line input
EMC input
Shipping restrictions apply.
Description
Introducing the Dsppa Mp9306U Ultra-Thin Digital Mixer Amplifier - 60W. A versatile audio solution designed for various applications. This 60W amplifier offers three working modes-Bluetooth, USB, and Line-providing flexibility in audio source connectivity.
Featuring wireless Bluetooth playback and a convenient remote control, the MP9306U ensures a seamless and user-friendly experience. The amplifier is equipped with Signal Level Indicator (SIG), Clip Indicator (CLIP), and Protection Indicator (PRO), allowing users to monitor and manage the audio signals effectively.
With multiple input options, including 2 MIC inputs with phantom input and priority input, and 2 line inputs, the MP9306U caters to diverse audio input requirements. It also includes 1 line 100V output and 1 line auxiliary output, offering versatile connectivity options.
The priority setting ensures a seamless audio experience, with a priority hierarchy of 100V input priority > Mic1 > others. The amplifier provides short-circuit, overload, and high-temperature protection, with a temperature-controlled fan to maintain optimal operating conditions.
For precise audio control, the MP9306U features individual volume control for Mic 1-2, Line 1-2, bass/treble adjustments, and master volume control. The tone controls include a Bass adjustment of 10dB (100Hz) and Treble adjustment of 10dB (10kHz), allowing users to tailor the audio output to their preferences.
Compact and ultra-thin, the machine dimensions are 200x190x44mm, making it suitable for various installations. With a net weight of 1.5kg, the DSPPA MP9306U is easy to handle and integrate into audio systems.
With its sleek design, versatile features, and reliable performance, the DSPPA MP9306U Ultra-Thin Digital Mixer Amplifier is an excellent choice for applications where space efficiency and high-quality audio reproduction are essential.
Please Note: Please use a constant-voltage speaker within the power range.
Features
- Bluetooth, USB and line modes
- Wireless Bluetooth playing
- With signal level indicator (sig)
- Clip indicator (clip)
- Protection indicator (pro)
- 100 VRS prior line input
- EMC input
- 2 mic inputs, with phantom input and priority input, 2 lines input
- With 1 line 100v outputs and 1 line auxiliary outputs
- Priority: 100v input priority> mic1>others
- With short-circuit, overload and high temp protection, temperature-controlled fan
- Individual volume control for mic 1-2, line 1-2, bass/treble and master volume control
Specifications
| Model | MP9306U |
| Rated Output Power | 60W |
| Rated Output Voltage | 100V |
| Sensitivity | |
| Mic1 In | 0.005(+-1mV) |
| Mic2 In | 0.006(+-1mV) |
| Line1 In, Line2 In, Priority In | 0.3(+-20mV)VRMS |
| Priority In-100V | 100 VRMS |
| Snr | |
| Mic1, Mic2, Line1 In | Approximately 74db(MAX.) |
| Line2 In, Input Priority | Approximately 80dB(MAX.) |
| Frequency Range | 80Hz-15kHz (+-3dB) |
| THD | Approximately 0.5% (1K under normal working condition) |
| Working Voltage | AC180-250V/50-60Hz |
| Tone | |
| Bass | +- 10dB (100Hz) |
| Treble | +- 10dB (10kHz) |
| Rated Power Consumption | 90W |
| Package Dimensions (LxWxH) | 310x275x120mm |
| Machine Dimensions (LxWxH) | 200x190x44mm |
| Net Weight | 1.5kg |
| Gross Weight | 2kg |
| Free Shipping | No |
|---|
