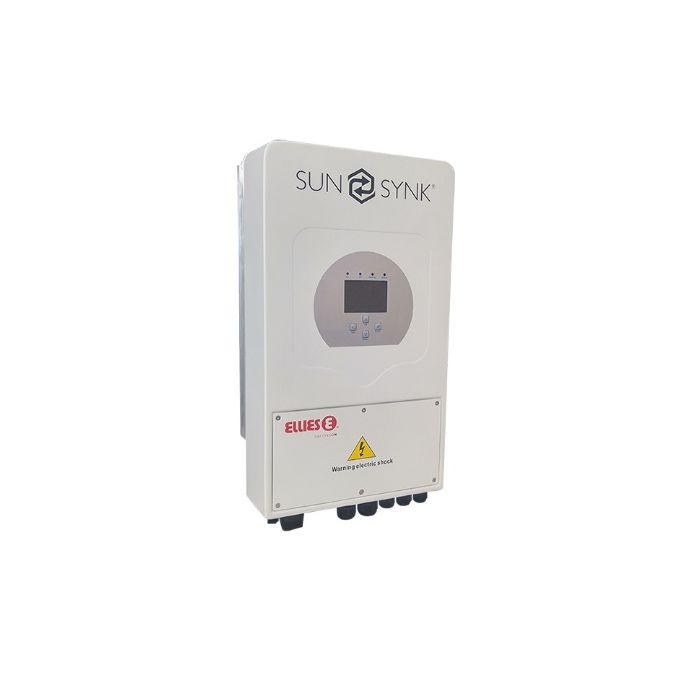

Ellies Hybrid Inverter - 3.6kW
R20,699.00
SKU
FBIHSK36K48P
Shipping restrictions apply.
Description
The Ellies Hybrid Inverter - 3.6kW is a highly efficient power management tool that allows the user to hit their electricity consumption targets by managing power from multiple energy sources. These include solar panels, the national electricity grid, a generator or even a wind turbine. The energy can be effectively stored as well, which allows for power whenever it is needed. The Sunsynk inverter can operate without a battery to save you electricity, to working as an Uninterrupted Power Supply with no panels, to combining both sources to operate like a hybrid system.
Features
- Multiple built-in mppts
- Built-in grid limiter
- Monitoring and ease of configuration
- Smart load
- Time of use charging / peak shaving
Specifications
| Batter Type | Lead-Acid or Li-ion |
| Battery Voltage Range (V) | 40V-60V |
| Max. Charging Current (A) | 90 |
| Max. Discharging Current (A) | 90 |
| Charging Curve | 3 Stages/Equalization |
| External Temperature Sensor | Optional |
| Charging Strategy For Li-Ion Battery | Self-Adaption to BMS |
| Max. Dc Input Power (W) | 4680 |
| Max. Dc Input Voltage (V) | 370 |
| Mppt Range (V) | 125-425 |
| Start-Up Voltage (V) | 150 |
| Max. Input Current (A) | 11 +11 |
| No. Of Mppt Trackers | 1 |
| No. Of Strings Per Mppt Tracker | 1/1 |
| Rated Ac Output And Ups Power (W) | 3600 |
| Peak Power (Off Grid) | 2 Times Rated Power for 10 Seconds |
| Max. Ac Current (A) | 18 |
| Output Frequency And Voltage | 50/60Hz 220/230/240Vac (single phase) |
| Grid Type | Single Phase |
| Current Harmonic Distortion | THD<3% (Linear Load<1.5%) |
| Protection | Integrated |
| Operating Temperature Range (C) | -25-60C,>45 Derating |
| Cooling | Fan |
| Noise (Db) | 30 |
| Communication With Bms | RS485 CAN |
| Weight (Kg) | 20.5 |
| Size (Length x width x height Mm) | 580 x 330 x 208 mm |
| Protection Degree | IP65 |
| Installation Style | Wall-Mounted |
| Free Shipping | No |
|---|
