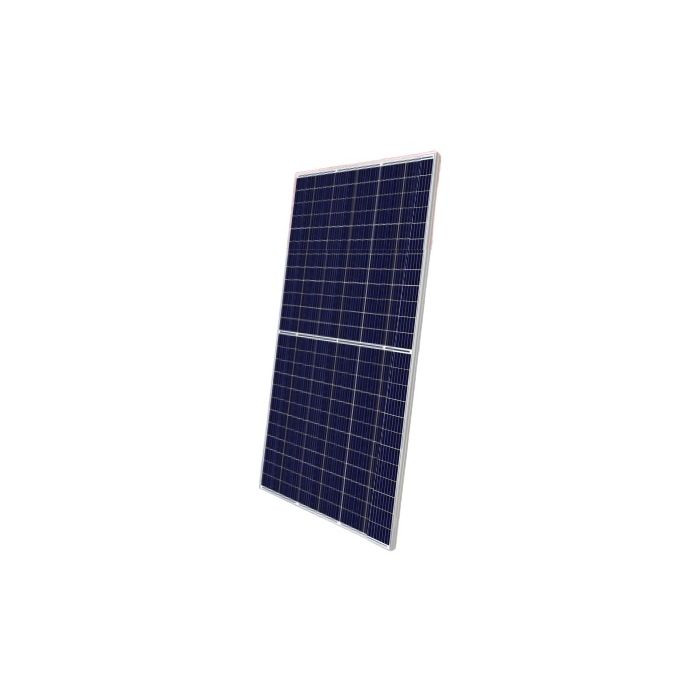

Ellies Poly Perc Solar Panel - 415W
R3,129.00
SKU
FSP415CS
Shipping restrictions apply.
Description
The Ellies Poly Perc Solar Panel - 415W uses the latest innovative cell technology. Increasing module power output and system reliability, ensured by 15 years of experience in module manufacturing. Well-engineered module design, stringent BOM quality testing, an automated manufacturing process and 100% EL testing.
Features
- Excellent module efficiency of up to 16.79 %
- Outstanding low irradiance performance: 96.0 %
- High ptc rating of up to 91.55%
- Ip67 junction box for long-term weather endurance
- Heavy snow load up to 5400 pa, wind load up to 2400 pa
- Lower internal current, lower hot spot temperature
- Fire class a and type 3 / type 13
- Minimizes micro-cracks and snail trails
- Low nmot: 41 - 3 c
- Low temperature coefficient (pmax:) -0.37 % / c
- Better shading tolerance
- 24% more front side power than conventional modules
- Up to 30% more power from the back side
Specifications
| Nominal Max. Power (Pmax) | 415 W |
| Operating Temperature | -40C - +85C |
| Max. System Voltage | 1500 V (IEC) or 1000 V (UL) |
| Max. Series Fuse Rating | 25 A |
| Application Classification | Class A |
| Power Tolerance | 0 + 5 W |
| Temperature Coefficient (Pmax) | -0.37 % / C |
| Temperature Coefficient (Voc) | -0.29 % / C |
| Temperature Coefficient (Isc) | 0.05 % / C |
| Nominal Module Operating Temperature | 41 - 3C |
| Cell Type | Poly-crystalline |
| Cell Arrangement | 144 2 X (12 X 6) |
| Dimensions | 2132 x 1048 x 30 mm (83.9 x 41.3 x 1.2 in) |
| Weight | 28.2 kg (62.2 lbs) |
| Front / Back Glass | 2.0 mm heat strengthened glass |
| Frame Anodized | aluminium alloy |
| J-Box | IP68, 3 diodes |
| Cable | 4.0 mm (IEC), 12 AWG (UL) |
| Cable Length (Including Connector) | Portrait: 400 mm (15.7 in) (+) / 280 mm (11.0 in) (-) landscape: 1400 mm (55.1 in) leap-frog connection: 1850 mm (72.8 in) |
| Connector | T4 series or H4 UTX or MC4-EVO2 |
| Per Pallet | 35 pieces |
| Free Shipping | No |
|---|
