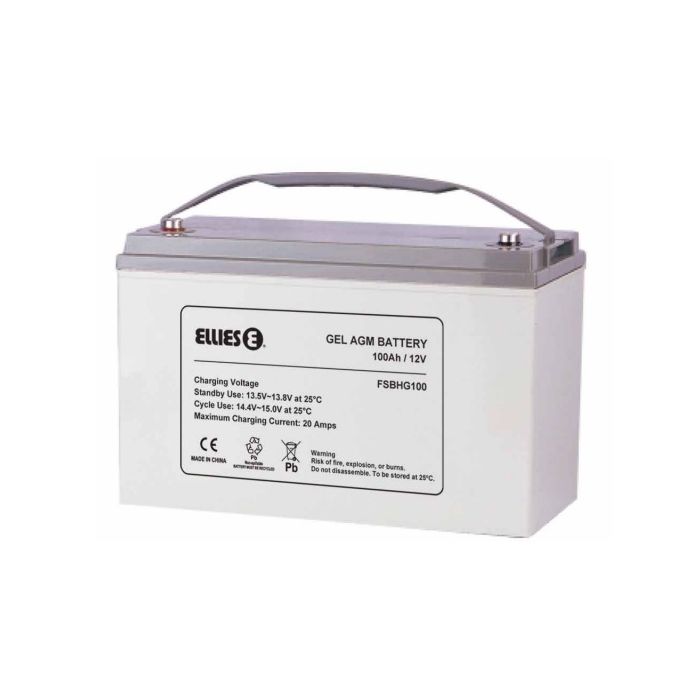

Ellies Solar Hybrid Gel Battery - 100Ah

R3,599.00
SKU
FSBHG100
Nominal Voltage 12V Nominal Capacity(10HR) 100.0AH Terminal T11(M8,Torque11-14.7Nm) Ideal for use with solar power systems
Confirm Availability
In stock
Shipping restrictions apply.
Safe & Secure Shopping
Satisfaction Guaranteed



Description

The Ellies Solar Hybrid Gel Battery - 100Ah has gel electrolytes which offers a special fibre separator between the plates. This innovative combination prevents acid stratification, improving the life cycle of the battery. Ideal for use with solar power systems (Household systems solar traffic lights emergency lighting system inverter moveable energy storage system UPS for high frequency use.)



Features

  • Nominal Voltage 12V
  • Nominal Capacity(10HR) 100.0AH
  • Terminal T11(M8,Torque11-14.7Nm)
  • Ideal for use with solar power systems
  • Has gel electrolytes which offers a special fibre separator between the plates



Specifications

Nominal Voltage 12V
Nominal Capacity(10HR) 100.0AH
Terminal T11(M8,Torque11-14.7Nm)
Container Material ABS
Rated Capacity 105.0 AH/5.36A (20hr, 1.80V/Cell,25C) 100.0 AH/10.0A (10hr,1.80V/Cell,25C) 89.0 AH/17.8A (5hr,1.75V/Cell,25C) 77.1 AH/25.7A (3hr,1.75V/Cell,25C) 64.6 AH/64.6A (1hr,1.60V/Cell,25C)
Max. Discharge Current 1000A (5s)
Internal Resistance Approx 4.9m
Operating Temp. Range Discharge : -15-50C Charge : 0-40C Storage : -15-40C
Nominal Operating Temp. Range 253C
Cycle Use Initial charging current less than 20A voltage14.4V-15.0V at 25C temp. Coefficient -30mV/C
Standby Use No limit on initial charging current, voltage 13.5V-13.8V at 25C temp. Coefficient -20mV/C
Capacity affected by Temperature 40C 103%, 25C 100%, 0C 86%
Self Discharge Leoch LPC series batteries may be stored for up to 6 months at 25C and then a freshening charge is required. For higher temperatures, the time interval will be shorter
