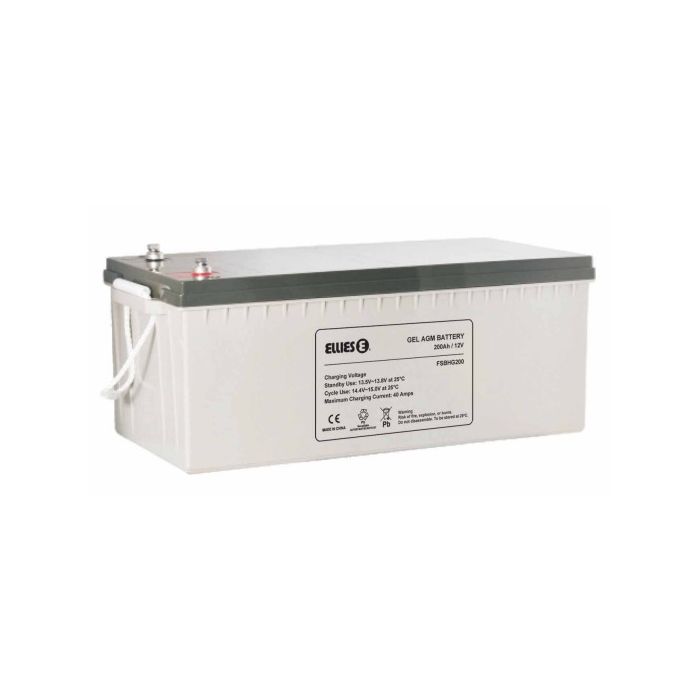

Ellies Solar Hybrid Gel Battery - 200Ah
R6,399.00
SKU
FSBHG200
Nominal Voltage 12V
Nominal Capacity(10HR) 200.0AH
Terminal T11(M8,Torque11-14.7Nm)
Ideal for use with solar power systems
Shipping restrictions apply.
Description
The Ellies Solar Hybrid Gel Battery - 200Ah has gel electrolytes which offers a special fibre separator between the plates. This innovative combination prevents acid stratification, improving the life cycle of the battery. Ideal for use with solar power systems (Household systems solar traffic lights emergency lighting system inverter moveable energy storage system UPS for high frequency use.)
Features
- Nominal Voltage 12V
- Nominal Capacity(10HR) 200.0AH
- Terminal T11(M8,Torque11-14.7Nm)
- Ideal for use with solar power systems
- Has gel electrolytes which offers a special fibre separator between the plates
Specifications
| Nominal Voltage | 12V |
| Nominal Capacity(10HR) | 200.0AH |
| Terminal | T11(M8,Torque11-14.7Nm) |
| Container Material | ABS |
| Rated Capacity | 210.0 AH/10.5A (20hr, 1.80V/Cell,25C) 200.0 AH/20.0A (10hr,1.80V/Cell,25C) 178.0 AH/35.6A (5hr,1.75V/Cell,25C) 159 AH/53.0A (3hr,1.75V/Cell,25C) 129.3AH/129.3A 1hr,1.60V/Cell,25C) |
| Max. Discharge Current | 2000A (5s) |
| Internal Resistance | Approx 4.9m |
| Operating Temp. Range | Discharge : -15-50C Charge : 0-40C Storage : -15-40C |
| Nominal Operating Temp. Range | 253C |
| Cycle Use | Initial charging current less than 40A voltage14.4V-15.0V at 25C temp. Coefficient -30mV/C |
| Standby Use | No limit on initial charging current, voltage 13.5V-13.8V at 25C temp. Coefficient -20mV/C |
| Capacity affected by Temperature | 40C 103%, 25C 100%, 0C 86% |
| Self Discharge | Leoch LPC series batteries may be stored for up to 6 months at 25C and then a freshening charge is required. For higher temperatures, the time interval will be shorter |
| Free Shipping | No |
|---|
