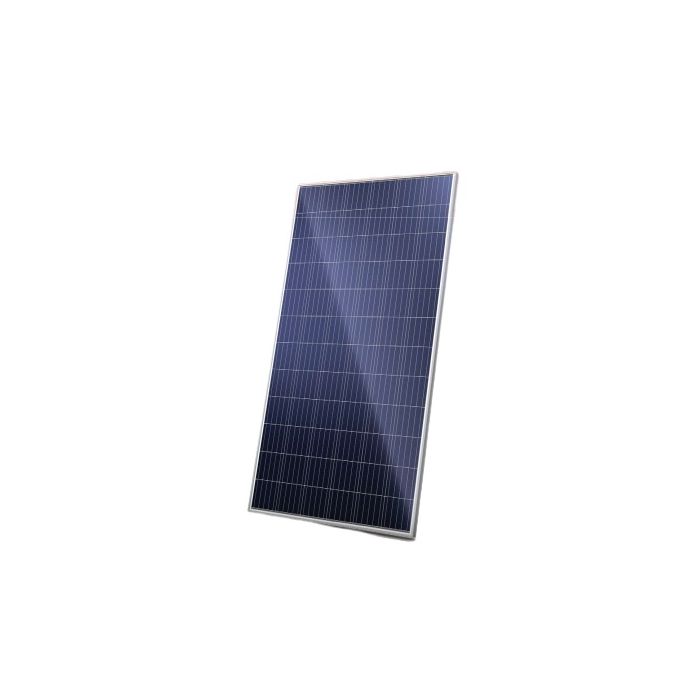

Ellies Solar Panel - 325W
R2,229.00
SKU
FSP325CS
Shipping restrictions apply.
Description
The Ellies Solar Panel - 325W uses the latest innovative cell technology. Increasing module power output and system reliability, ensured by 15 years of experience in module manufacturing. Well-engineered module design, stringent BOM quality testing, an automated manufacturing process and 100% EL testing.
Features
- Excellent module efficiency of up to 16.79 %
- Outstanding low irradiance performance: 96.0 %
- High PTC rating of up to 91.55%
- IP67 junction box for long-term weather endurance
- Heavy snow load up to 5400 Pa, wind load up to 2400 Pa
Specifications
| Nominal Max. Power (Pmax) | 325 W |
| Opt. Operating Voltage (Vmp) | 37.0 V |
| Opt. Operating Current (Imp) | 8.78 A |
| Open Circuit Voltage (Voc) | 45.5 V |
| Short Circuit Current (Isc) | 9.34 A |
| Module Effciency | 16.72 % |
| Operating Temperature | -40C - +85C |
| Max. System Voltage | 1000 V (IEC) or 1000 V (UL) |
| Max. Series Fuse Rating | 15 A |
| Application Classification | Class A |
| Power Tolerance | 0 + 5 W |
| Nominal Max. Power (Pmax) | 236 W |
| Opt. Operating Voltage (Vmp) | 33.7 V |
| Opt. Operating Current (Imp) | 6.98 A |
| Open Circuit Voltage (Voc) | 41.8 V |
| Short Circuit Current (Isc) | 7.57 A |
| Cell Type Poly-crystalline, | 6 inch |
| Cell Arrangement | 72 (6x12) |
| Front Cover | 3.2 mm tempered glass |
| Frame Material | Anodized aluminium alloy |
| J-Box | IP67, 3 diodes |
| Cable | 4mm2 2 (IEC) or 4mm & 12 AWG 1000 V (UL),1160 mm (45.7in) |
| Connectors | T4 series or PV2 series |
| Per Palle | 26 pieces, 635 kg (1400lbs) |
| Per container | (40 HQ) 624 pieces |
| Free Shipping | No |
|---|
