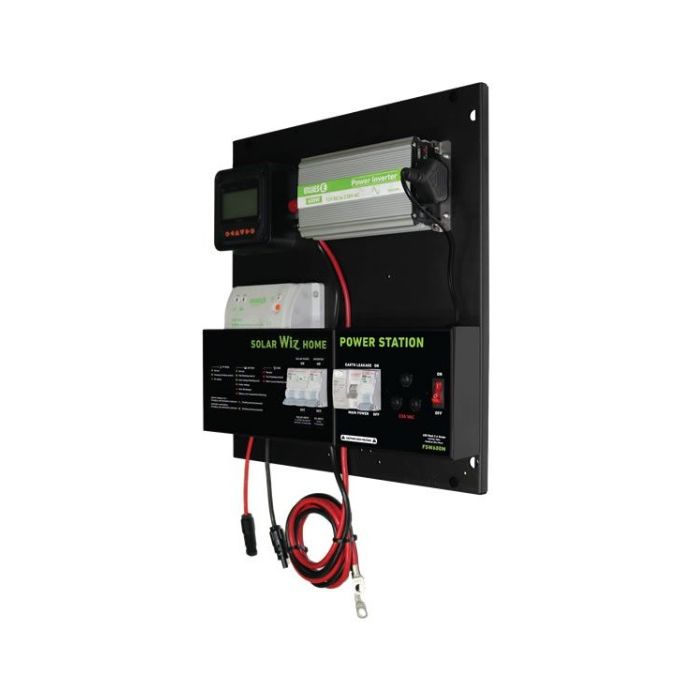

Ellies Solar Wiz Off Grid Home Power System - 600W
R5,289.00
SKU
FSW600P
Description
The Ellies Solar Wiz Off Grid Home Power System - 600W provides 230Vac mains power for places where utility power is unavailable. The unit is an ideal solution to power small homes off the grid. The Solar Wiz system provides charging & powering of mobile devices and small appliances.
Please Note: Solar PV Panel & Battery not included!
Features
- Easy to install
- Instant FREE power in minutes after batteries are fully charged
- Free electricity from sun on daily basis with PV panel/s installed
- 5 x DC output sockets for 12V compatible TVs, decoders & lights
- Rugged & robust design
- Dual USB output for charging mobile devices such as tablets, mobile phones and PDAs
- Intelligent 4 stage charging system for optimal battery life expectancy
- Over, under voltage as well as short circuit protection on all outputs
- Ideal for small power requirements, single dwellings, rural housing and holiday homes
- Stand-alone back up system
- Choose a battery bank size to suit your needs
- LED battery level indicators
- Charge stage indicator
- Built-in 600W pure sine wave inverter
Specifications
| Input voltage | 10.5VDC - 15VDC |
| Max Panel Wattage (12V Panels only) | 1 x 140W |
| Max charge current | 10 Amps |
| Max Output Current Per DC outlet | Max 2 Amps (3 Amp Trip Current) |
| Max Output Current on 2.1 A USB | Max 2.4 Amps |
| Max Output Current on 1.0 A USB | Max 1.2 Amps |
| Max Total Output Current | Max 13 Amps |
| Compatible battery types | Lead acid, Lead crystal & AMG types only |
| Materials (case and cover) | Mild Steel & ALU |
| Working temperature | 10C - 60C |
| Storage temperature | 20C - 70C |
| Power consumption without loads (W) | 0.35W |
| Current Consumption without load(A) | 0.025A |
| Charge modes | 4 (Pre, Bulk, Float & Equalisation) |
| PV Input voltage | 15VDC - 35VDC (Max) |
| Thermal Compensation | 0.003V per C per Cell (25C) |
| Max Battery Size | 250 Ah 12VDC |
| Max Battery Discharge disconnect (%) | 50% Depth of Discharge |
| Regularity of Equalisation | Charge Once Every 30 Days |
| Inverter Circuit breaker | MAX Current 63A |
| PV Panel Circuit breaker | MAX current 32A (16A per cable) |
| PV Panel Connector Type | MC4 Standard PV Connectors |
| Battery Connector Type | Clamps |
| Earth Leakage trip | Current (N to E) 0.03A |
| Inverter breaker | MAX Current 6A |
| Plug Type S.A type | 3 Prong (Earthed) |
| Power Switch current | 15A (With Neon power Indicator) |
| Inverter output | Wave Form Pure Sine Wave |
| LED Indicators | Power & Fault |
| DC/AC Isolation | Yes |
| Thermal cooling fan | Yes (Thermally Controlled) |
| Overvoltage protection | Yes (Indicator & Shutdown) |
| Low voltage protection | Yes (Indicator & Shutdown) |
| Over temperature | Yes (Shuts off output Automatically) |
| Input polarity Protection | Yes (By Fuse) |
| Soft start | Yes |
| DC input Voltage | 12VDC only |
| Max Input Current | 62.86Amps |
| Input Voltage Range | 11.5 to 15.5VDC |
| No Load Current Draw | 0.25A |
| Efficiency (Inverter only) | > 90% |
| AC Voltage Output | 230Vac 3% |
| AC Current Output | 1.3Amps Max |
| Continuous power Output | 600W |
| Surge Power Output | 1200W |
| Output Frequency | 50Hz |
| Free Shipping | No |
|---|
