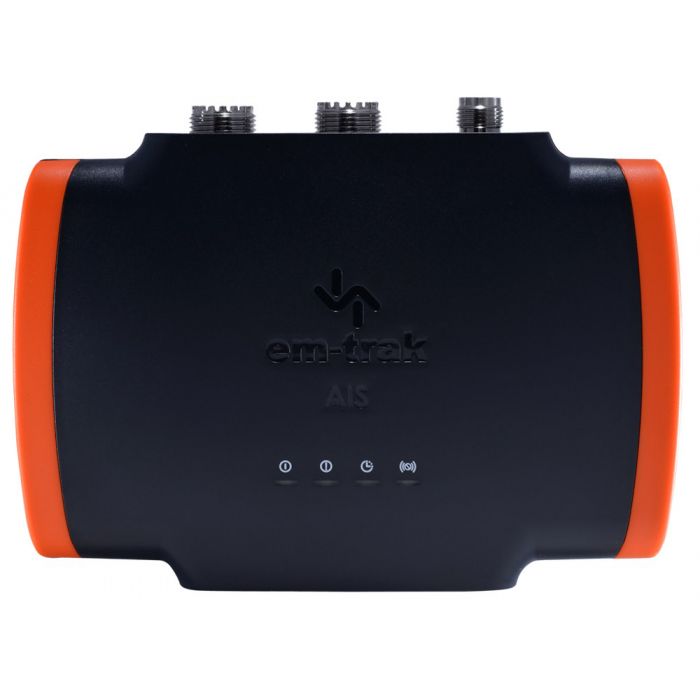

EM-Trak AIS B922 Class B Tranceiver - GNSS Receiver, NMEA 2000, NMEA 0183, Wi-Fi, Bluetooth
R25,219.00
SKU
EM-TRAK B922
Manufacturer's Website
Description
Enhance your on-the-water experience with the EM-Trak AIS B922 Class B Tranceiver - GNSS Receiver, NMEA 2000, NMEA 0183, Wi-Fi, Bluetooth a market leading range of standard and high transmit power AIS Class B transceivers designed for real-world conditions. Small, lightweight, and built to last, every product in the range delivers em-trak's advanced performance and ultimate connectivity, giving you the complete picture and the time to respond. With easy installation and connectivity options, the B900 series offers flexible, wireless or wired usage, helping you to get the most from your transceiver and related onboard equipment every day.
Features
- Certified AIS Class B 2W CSTDMA
- Plug & Play Connectivity Wi-Fi & Bluetooth
- Global Certification USCG / FCC / Canada / Europe
- SRT-AIS transceiver engine for superlative proven performance
- FLEXI-FIT bracket system for easy, convenient and secure installation
- Internal high-performance GPS receiver and antenna (external antenna optional)
- Water, pressure spray and damp proof IPx6 & IPx7
- Ruggedised protected from vibration, shock and extreme temperatures
- Small and lightweight
- Ultra-low power consumption best in class
- NMEA0183 & NMEA2000
- Automated health and performance monitoring
- Silent Mode (transmit-off) function
- Built-in power surge protection
Specifications
| Size (WxHxD) | 150 x 115 x 45mm |
| Weight | 425g |
| Operating Temperature | -25 C to +55 C |
| Storage temperature | -25 C to +70 C |
| Ingress protection | IPx6 and IPx7 |
| Supply Voltage | 12V or 24V DC |
| Supply Voltage Range | 9.6V 31.2V DC |
| Average Current (At 12V) | 280mA |
| Average Current (At 12V) (Wireless Off) | 245mA |
| Peak Current | 2A |
| Average Power Consumption (At 12V) | 3.4W |
| Average Power Consumption (At 12V) (Wireless Off) | 2.9W |
| Galvanic Isolation | NMEA 0183 inputs only, NMEA 2000, VHF antenna port |
| VHF Antenna | SO-239 |
| VHF Radio | SO-239 |
| GNSS | TNC |
| Power/NMEA 0183/Silent Mode | 12 way circular multipole |
| NMEA 2000 | 5 way Micro-C connector |
| USB | USB Micro-B |
| NMEA 0183 | 2 x bi-directional ports |
| NMEA 2000 | NMEA2000 Ed 3.101, LEN1 |
| USB | PC virtual com port for NMEA0183 data |
| Wi-Fi | IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode) |
| Bluetooth | BT Classic 4.0, 7 concurrent connections |
| AIS Standards | IEC 62287-1 Ed. 3. ITU-R M.1371.5 |
| Product Safety Standards | EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008 |
| Environmental Standards | IEC 60945 Ed. 4 |
| Serial Data Interface Standards | IEC 61162-1 Ed 5.0. IEC 61162-2 Ed 1.0 |
| NMEA 2000 | NMEA 2000 Ed 3.101 |
| GNSS Performance Standards | IEC 61108-1 Ed 2.0. IEC 61108-02 Ed 1.0 |
| Systems Supported | GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo) |
| Channels | 72 |
| Internal/External Antenna | Internal or optional external antenna |
| Time To First Fix From Cold Start | 26s |
