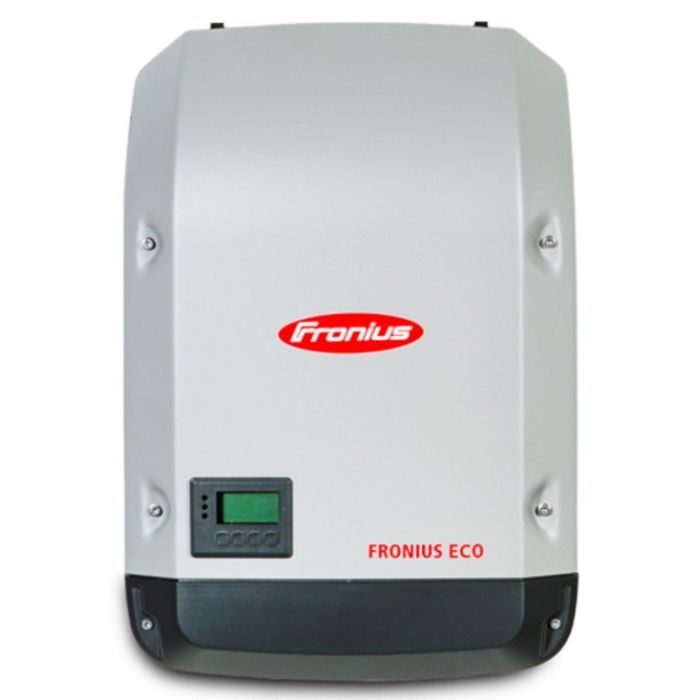

Fronius Eco 25.0-3-S Light 3 Phase Inverter - 25kW
R69,339.00
SKU
3000200167
Shipping restrictions apply.
Manufacturer's Website
Description
The Fronius Eco 25.0-3-S Light 3 Phase Inverter - 25kW meets all the requirements of large-scale installations. Thanks to its light weight and SnapINverter mounting system, this transformerless device can be installed quickly and easily, either indoors or outdoors. This inverter range is setting new standards with its IP 66 protection class. Furthermore, thanks to its integrated double fuse holders and optional overvoltage protection, string collection boxes are no longer necessary.
Features
- SnapINverter Technology
- Smart Grid Ready
- Dynamic Peak Manager
- Zero feed-in
- Very high efficiency of up to 98%
- Terminal connections
- IP66
- 1 MPP tracker
Specifications
| Number Of MPP Trackers | 1 |
| Max. Input Current (Idc Max) | 44,2 A |
| Max. Short Circuit Current, Module Array | 71,6 A |
| DC Input Voltage Range (Udc Min - Udc Max) | 580 - 1000 V |
| Feed-In Start Voltage (Udc Start) | 650 V |
| Nominal Input Voltage (Udc,r) | 580 V |
| MPP Voltage Range (Umpp Min - Umpp Max) | 580 - 850 V |
| Usable MPP Voltage Range | 580 - 850 V |
| Number Of DC Connections | 6 |
| Max. PV Generator Power (Pdc max) | 37,8 kWpeak |
| AC Nominal Output (Pac,r) | 25 kW |
| Max. Output Power (Pac Max) | 25 kVA |
| AC Output Current (Iac Nom) | 37,9/36,2 A |
| Grid Connection (Uac,r) | 3 - NPE 400/230, 3 - NPE 380/220 V |
| AC Voltage Range (Umin - Umax) | 150 - 275 V |
| Frequency (FR) | 50 / 60 Hz |
| Frequency Range (Fmin - Fmax) | 45 - 65 Hz |
| Total Harmonic Distortion | < 2 % |
| Power Factor (cos ac,r) | 0 - 1 ind,/cap, |
| Width | 510mm |
| Height | 725mm |
| Depth | 225mm |
| Weight | 35,7 kg |
| Degree Of Protection | IP 66 |
| Protection Class | 1 |
| Overvoltage Category (DC / AC) 1) | 2 / 3 |
| Night-Time Consumption | < 1 W |
| Inverter Design | Transformerless |
| Cooling | Regulated air cooling |
| Installation | Indoors and outdoors |
| Ambient Temperature Range | -25 C - +60 C |
| Permitted Humidity | 0 - 100 % |
| Max. altitude2 | 2,000m |
| DC Connection Technology | 6x DC+ and 6x DC- screw terminals 2.5 - 16 mm2 |
| AC Connection Technology | 5-pin AC screw terminals 2.5 - 16 mm2 |
| Certificates & Compliance With Standards | VE / NORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777, CEI 0-21, NRS 097 |
| Interference Emission Class | B |
| Max. Efficiency (PV - grid) | 98,2% |
| European Efficiency | 98% |
| Free Shipping | No |
|---|
