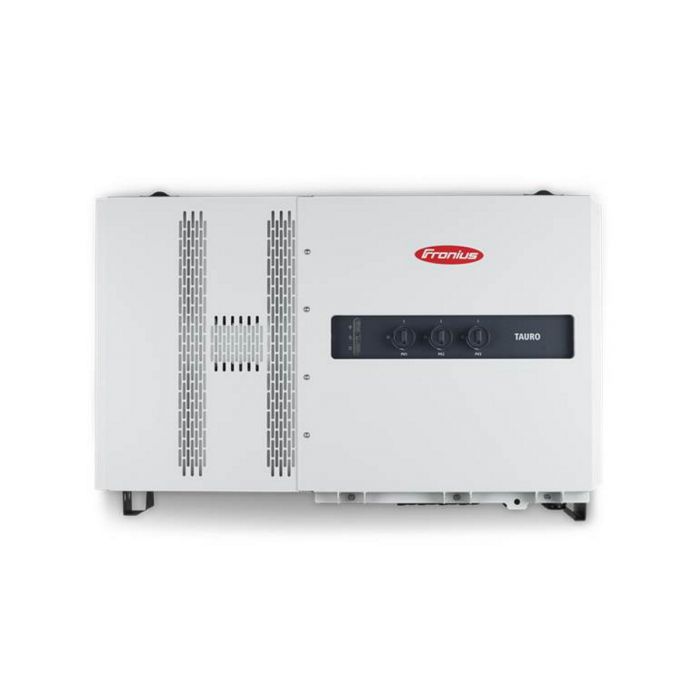

Fronius Tauro Eco 50-3-D Three Phase Inverter - 50kW
R150,199.00
SKU
3000200304
Description
The Fronius Tauro Eco 50-3-D Three Phase Inverter - 50kW promises maximum performance, even under the harshest conditions. With its smart hardware design, it not only contributes to BOS cost optimization, but also offers unprecedented flexibility in system design. The Fronius Tauro can be used to implement sophisticated roofs in both centralised (P variant) and decentralised system designs (D variant). Simplest installation and the fastest service on the market also guarantee maximum safety.
Features
- 3 MPP trackers
- Max DC fuse size rating of 20A
- 50kW AC nominal output
- 1 PV1 DC connection
- Max PV generator power of 75kWpeak
- Easy to install
Specifications
| Input Data | |
| Number of MPP trackers | 3 |
| Max. input current (Idc maxinverter) | 134 A |
| DC input voltage range (Udc min - Udc max) | 200 - 1000 V |
| Feed-in start voltage (Udc start) | 200 V |
| MPP voltage range (Umpp min - Umpp max) | 400 - 870 V |
| Max. PV generator power (Pdc max) | 75 kWpeak |
| Max. input current PV1 (Idc max, PV1) | 36 A |
| Max. input current PV2 (Idc max, PV2) | 36 A |
| Max. input current PV3 (Idc max, PV3) | 72 A |
| Max. short-circuit current PV1 (Isc max, PV1) | 72 A |
| Max. short-circuit current PV2 (Isc max, PV2) | 72 A |
| Max. short-circuit current PV3 (Isc max, PV3) | 125 A |
| Max. power PV system PV1 (Pdc max,PV1) | 25 kWpeak |
| Max. power PV system PV2 (Pdc max, PV2) | 25 kWpeak |
| Max. power PV system PV3 (Pdc max, PV3) | 50 kWpeak |
| Max. AC fuse size rating | 355 A |
| Max. short-circuit current inverter (Isc max, inverter) | 240 A |
| Number of DC connections PV1 | 1 |
| Number of DC connections PV2 | 1 |
| Number of DC connections PV3 | 1 |
| Output Data | |
| AC nominal output (Pac,r) | 50 kW |
| Max. output power (Pac max) | 50 kVA |
| AC output current (Iac nom) | 75,8A at 220Vac , 72,5A at 230Vac |
| Grid connection (Uac,r) | 3 NPE 380/220 , 3 NPE 400/230 V |
| AC voltage range (Umin - Umax) | 180 - 270 V |
| Frequency (fr) | 50/60 Hz |
| Frequency range (fmin - fmax) | 45 - 65 Hz |
| Total harmonic distortion | <3,0% |
| Power factor (cos ac,r) | 1 ind,/cap, |
| Max. DC fuse size rating | 20 A |
| General Data | |
| Length | 1109 mm |
| Width | 755 mm |
| Depth | 346,2 mm |
| Weight | 92 kg |
| Weight incl. packaging | 111 kg |
| Degree of protection | IP65 |
| Protection class | 1 |
| Overvoltage category (DC / AC) 1) | 2 / 3 |
| Night-time consumption | 15 W |
| Installation | Indoor and outdoor 4 |
| Ambient temperature range | '-40C - +65C (optional AC-disconnect: from - 30 to + 65 C) |
| Permitted humidity | 0-100 % |
| Max. altitude | 4000 m |
| Free Shipping | No |
|---|
