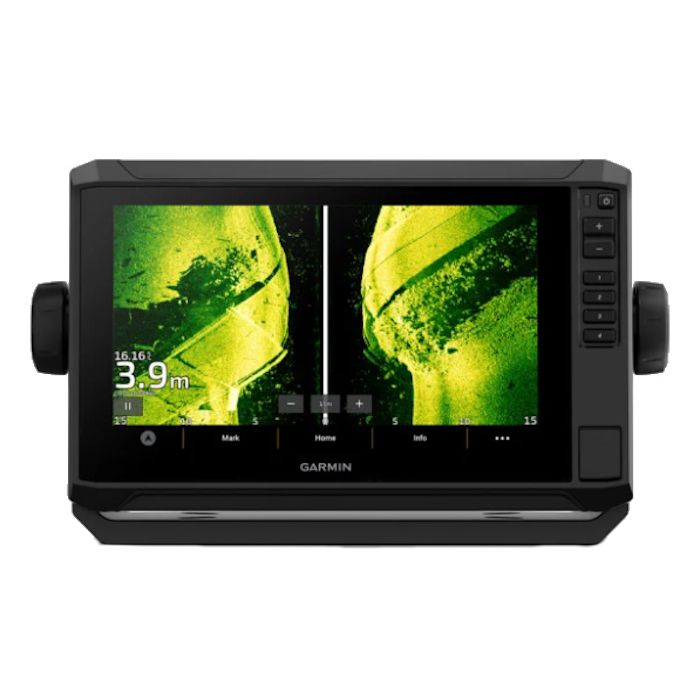

Garmin Echomap UHD2 Fishing Chartplotters With GT56UHD-TM Transducer - 9", Black, 92sv

R35,199.00
SKU
100268701

  • Large, high-resolution touchscreen display
  • Ultra High-Definition (UHD) sonar
  • Preloaded BlueChart g3 coastal charts
  • Wi-Fi connectivity
Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed
Manufacturer's Website





Description

The Garmin Echomap UHD2 Fishing Chartplotters With GT56UHD-TM Transducer - 9", Black, 92sv are cutting-edge marine navigation devices that combine advanced technology and exceptional performance. With a large and vibrant 9-inch display, these chartplotters provide a crystal-clear view of charts, maps, and other important information, making them an invaluable tool for navigating the waterways.

Featuring a high-resolution touchscreen display, the ECHOMAP UHD2 chartplotters deliver sharp and detailed visuals with impressive clarity. The spacious screen size ensures that you can easily view and interact with the various functions and features, providing an intuitive and seamless user experience.

One of the standout features of the ECHOMAP UHD2 chartplotters is their built-in Ultra High-Definition (UHD) sonar technology. This advanced sonar technology offers incredibly detailed and precise imaging of the underwater environment, enabling you to identify underwater structures, contours, and fish with remarkable clarity. Whether you're fishing, cruising, or exploring, the UHD sonar provides valuable insights to enhance your time on the water.

The chartplotters come preloaded with Garmin's BlueChart g3 coastal charts, providing comprehensive and up-to-date mapping coverage of coastal waters, including harbors, marinas, and other points of interest. With built-in Wi-Fi connectivity, you can easily access software updates, download additional charts, and share waypoints and routes with other compatible Garmin devices.

Equipped with a GPS receiver, the ECHOMAP UHD2 chartplotters ensure accurate positioning and navigation. You can create and save custom routes, mark waypoints, and track your speed and heading, allowing you to plan and execute your boating adventures with confidence. Moreover, these chartplotters support optional accessories such as radar, AIS, and autopilot, expanding their functionality to meet your specific boating requirements.



Features

  • Large, high-resolution touchscreen display
  • Ultra High-Definition (UHD) sonar
  • Preloaded BlueChart g3 coastal charts
  • Wi-Fi connectivity
  • GPS receiver
  • Rugged and water-resistant design
  • User-friendly interface
  • ActiveCaptain app compatibility



Specifications

Dimension 10.4" X 6.5" X 3.2" (26.4 X 16.6 X 8 cm)
Touchscreen Yes
Input Touchscreen With Keyed Assist
Display Size 7.8" X 4.5", 9" (19.8 X 11.5 Cm, 22.9 Cm)
Display Resolution 1024 X 600 Pixels
Display Type Wsvga, Tn
Weight 2.9 Lbs (1.3 Kg)
Water Rating Ipx7
Mounting Options Bail Or Flush
Accepts Data Cards 1 Microsd Card 32 Gb Maximum Size
Waypoints 5 000
Track Points 50 000
Tracks 50 Saved Tracks
Navigation Routes 100
Has Built-In Receiver Yes
Receiver 10 Hz
Nmea 2000 Compatible Yes
GPS Yes
Glonass Yes
Galileo Yes
Beidou Yes
Supports Waas Yes
Supports Multi-band, Multi-constellation GPS Yes
Built-in Auto Guidance+ Yes (Downloadable Via Activecaptain App)
Garmin Navionics+ Inland & Coastal Yes (See Additional)
Garmin Navionics+ Yes
Garmin Navionics Vision+ Yes
Topo Yes
Standard Mapping Yes
Garmin Quickdraw Contours Yes
Ais Yes
Dsc Yes
Supports Fusion-link Compatible Radios Yes
Activecaptain Mobile Planning Compatible Yes
Sailing Features Yes
Power Input 9 To 18 Vdc
Typical Current Draw At 12 Vdc 1.72 A
Maximum Current Draw At 12 Vdc 3.5 A
Maximum Power Usage At 10 Vdc 20.7 W
Displays Sonar Yes
Power Output 500 W
Traditional Sonar (Dual Frequency/Beam) Built-in (Single Channel Chirp, 50/77/83/200 Khz, L, M, H Chirp)
Clearv Built-in 260/455/800/1000/1200 Khz
Sidev Built-in 260/455/800/1000/1200 Khz
Panoptix Sonar Yes
Livescope Yes
Nmea 2000 Ports Yes
Garmin Marine Network Ports 1
12-pin Transducer Ports 1
Bluetooth Calling Yes
Ant+ (Connectivity) Yes
Garmin Wi-fi Network (Local Connection) Yes
