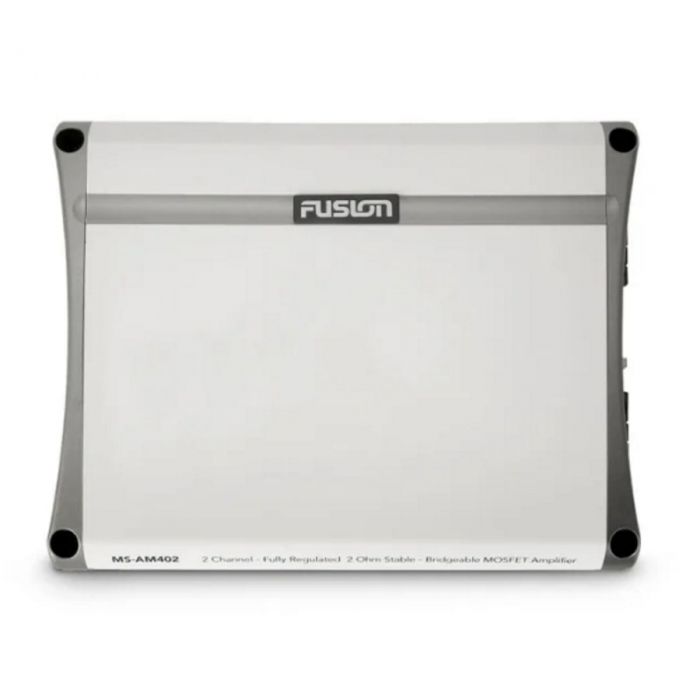

Garmin Fusion AM Series Marine Channel 2 Amplifier - 400w, White
R5,859.00
SKU
010-01499-00
- Class-AB amplifier design
- Connect up to two speakers
- Channel 2
Description
The Garmin Fusion AM Series Marine Channel 2 Amplifier - 400w, White features a Class-AB design that provides a high power output with reduced distortion to the connected speakers/subwoofers for an enhanced level of audio performance. The marine-ready design helps to extend the life of your amplifiers, the AM series amplifier is designed with conformal coated PCBs to provide extra protection from the marine elements.
Features
- Class-AB amplifier design
- Connect up to two speakers
- Conformal coated PCBs
- Heat sink
- Channel 2
Specifications
| Dimensions | |
| Channel 2 | 11.65" x 9.02" x 2.09" / 296mm x 229mm x 53mm |
| Amplifier Class | Class-AB |
| Rated Power | |
| Channel 2 | 400w |
| Total Rated Power Output 4ohm | |
| Channel 2 | 65 W RMS x 2 @ 14.4 V input - 4 Ohm < 1% THD |
| Total Rated Power Output 2ohms | |
| Channel 2 | 100 W RMS x 2 @ 14.4 V input - 2 Ohm < 1% THD |
| Total Rated Power Output 4ohms Bridged | |
| Channel 2 | 200 W RMS x 1 @ 14.4 V input - 4 Ohm Bridged < 1% THD |
| Frequency Response | 5Hz - 38kHz / -3dB, dB @ 4 Ohm rated power |
| Input Sensitivity | 0.3 V - 8 V RMS, user adjustable |
| Input Impedance | 5k Ohm nominal |
| High-pass/low-pass full range filter | Yes (user selectable) |
| HP variable crossover frequency | 40 Hz - 600 Hz |
| LP variable crossover frequency | 40 Hz - 160 Hz |
| Free Shipping | No |
|---|
