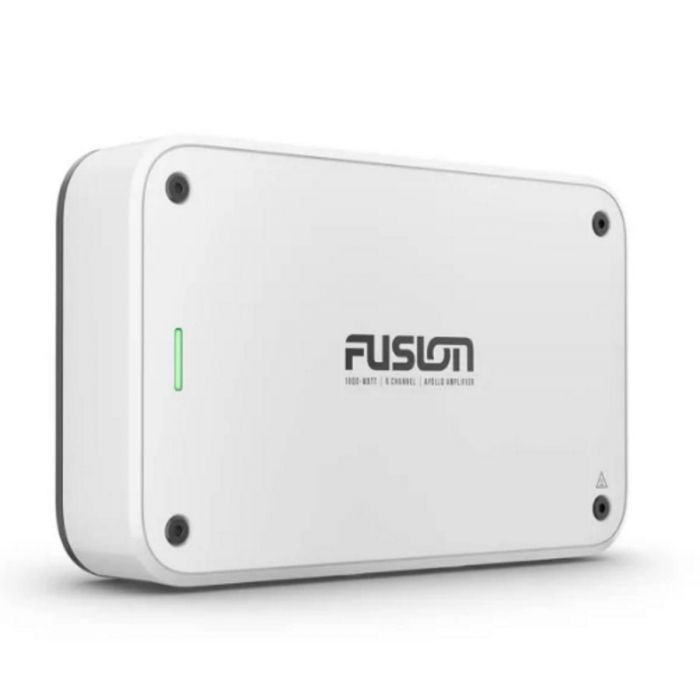

Take things further with the Garmin Fusion Apollo 6 Marine Amplifier - White. The amplifier helps you keep the music going for longer without draining your battery so quickly. With the amplifier there is less distortion as some distort audio when they add power, but this amplifier is specifically designed with minimal distortion and noise, so you are able to enjoy high-quality audio, even when you are blasting your music.
When it comes to build the amplifier features ignition protection, this helps prevent potential damage from overheating and with the conformal-coated PCBS the circuit-board has been specially coated to provide extra protection from the harsh marine elements.
Physical Dimensions | 11.69 x 7.06 x 1.75 / 297mm x 180mm x 45mm |
Water Rating | IPX2 |
Amplifier Class | D |
CEA-2006 Power Rating | 150 watt RMS x 6 @ 14.4 V input - 4 ohm < 1% THD |
Total Rated Power Output - 2 Ohm | 290 watt RMS x 6 @ 14.4 V input - 2 ohm < 1% THD |
Peak Power | 580 watt RMS x 3 @ 14.4 V input - 4 ohm Bridged < 1% THD |
Total Rated Power Output - 4ohm Bridged | 1800 watts |
Input Sensitivity | 1.3 V RMS |
Input Impedance | 22k ohm |
Operating Voltage | 10.8 V - 16 V DC |
Current Consumption (Standby) | < 5 mA @ 14.4 V input |
Current Consumption (Idle) | < 1.32 A @ 14.4 V input |
Current Consumption (Max) | 78 A |
Fuse Rating | 125 A electronic fuse (no replacement necessary) |
Ignition Safety Protected | Yes |
Operating Temperature Range | 0 to 50 C |
