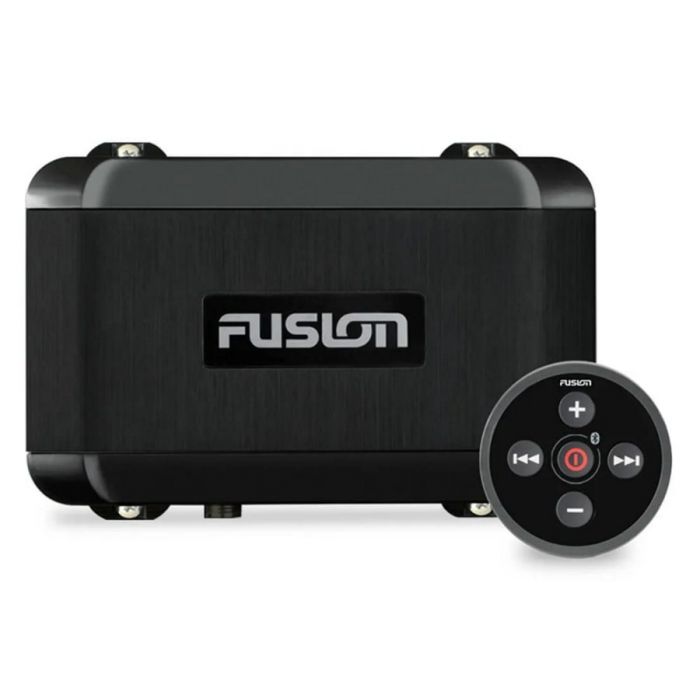

Garmin Fusion BB100 Audio Black Box
R10,249.00
SKU
010-01517-01
- Compact form factor
- Built-in Class-AB amplifier
- Multi-Zone technology
Description
With the Garmin Fusion BB100 Audio Black Box you don't have to compromise on quality audio entertainment due to limited helm space.
When it comes to build this black box features a compact form factor, which allows for easy installation on your boat. With sound quality, this black box delivers efficiency with reduced distortion. With the black box, you are able to control your music from a compatible multifunction display, smart device or Garmin watch making this box quite handy.
Features
- Compact form factor
- Built-in Class-AB amplifier
- Multi-Zone technology
- Easy to install
Specifications
| Dimensions | |
| Black Box | 6.1" x 3.7" x 2.63" / 155mm x 94mm x 60mm |
| Remote | 2.56" x 2.56" x 2.13" / 65mm x 65mm x 54mm |
| Water Rating | |
| Black Box | IPX3 |
| Wired Remote | IPX7 |
| Operating Temperature | 32 to 122 F (0 to 50 C) |
| Current (Max) | 15 A |
| Networking | |
| NMEA 2000 Len | 1 / 50mA |
| Bluetooth Wireless Range | Up to 30ft / 10m |
| Ant Wireless Range | Up to 10ft / 3m |
| Wireless Frequency / Protocols | |
| Bluetooth | 2.4 GHz @ +1.9 dBm nominal |
| Ant | 2.4 GHz @ +1.9 dBm nominal |
| Audio | |
| Amplifier | Class-AB / 4ohm |
| Electrical Features | |
| Power Input | 10.8 - 16 VDC |
| Compass Safe Distance | 5.9" / 150mm |
| Stero Features | |
| Peak Power | 200w |
| Rated Power Output | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| Fusion-Link Control | Yes (MFD, smart device and Garmin watch) |
| Multi-Zone Technology | 2 zones |
| Free Shipping | No |
|---|
