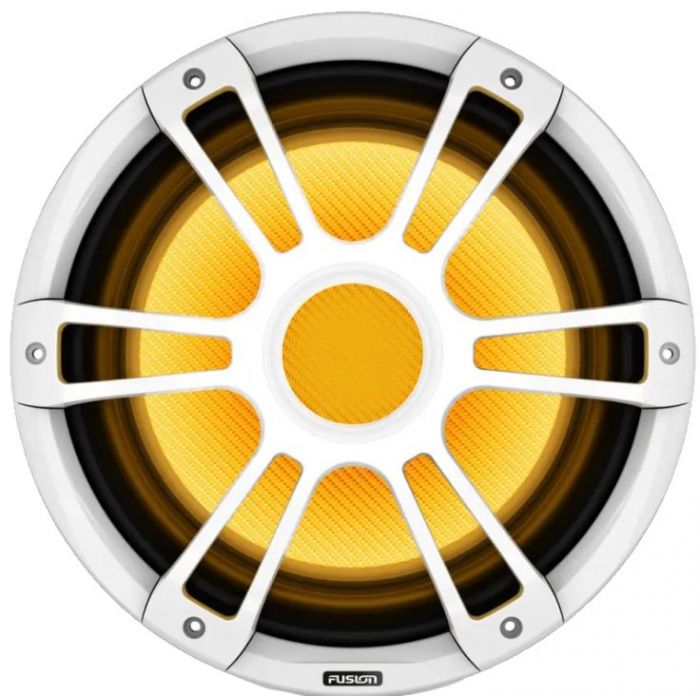

Garmin Fusion Signature Series 3I Marine Subwoofers - 12" 1400-Watt, White
R13,399.00
SKU
100277510
Crystal-clear premium sound quality
Water-resistant connectors
Ip65 rating
Shipping restrictions apply.
Description
Introducing the Garmin Fusion Signature Series 3I Marine Subwoofers - 12" 1400-Watt, White. The Fusion Signature Series 3I Marine Subwoofers, available in both 12" and 10" variants, redefine marine audio with their superior build and exceptional performance. Boasting physical dimensions and weights suited for different sizes, these subwoofers are engineered for marine environments, featuring an IP65 water and dust rating, making them highly resilient against harsh marine conditions.
The 12" subwoofer delivers a peak power of 1400 watts, while the 10" version reaches 600 watts, with RMS power ratings of 700 watts and 300 watts respectively. This power, combined with a sensitivity of 86 dB and a frequency response range of 20 Hz to 2 kHz for the 12" and 30 Hz to 2 kHz for the 10", ensures crystal-clear premium sound quality that enhances your marine audio experience.
These subwoofers incorporate a polypropylene cone with a rubber surround, accompanied by a magnetic structure specifically tailored to each size variant. The 12" subwoofer features a 4" voice coil diameter and a 114 oz magnetic structure, while the 10" version has a 2" voice coil diameter and a 68 oz magnetic structure, delivering impactful and detailed sound reproduction.
Moreover, they boast CRGBW LED lights, adding a visual spectacle to your marine audio experience. These subwoofers integrate marinised connectors, redesigned grilles, and LED illumination, adhering to the True-Marine philosophy of Fusion, ensuring durability, longevity, and a seamless system integration.
Features
- Crystal-clear premium sound quality
- Water-resistant connectors
- Ip65 rating
- Crgbw LED lights
- Marinised connectors
- Redesigned grille
- True-marine philosophy
- System integration
- Led illumination
- Polypropylene cone technology
- Sports subwoofer
- Classic white subwoofer
Specifications
| General | |
| Physical Dimensions (Diameter X Depth) | 12" sports subwoofer: 14.02" x 10" (356 x 254 mm) |
| 10" classic subwoofer: 10.83" x 6.38" (275 x 162 mm) | |
| 10" sports subwoofer: 10.83" x 6.77" (275 x 172 mm) | |
| Weight | 12" CRGBW sports subwoofer: 24.1 lbs (10.93 kg) |
| 10" CRGBW sports subwoofer: 11.3 lbs (5.12 kg) | |
| 10" sports subwoofer: 11.2 lbs (5.06 kg) | |
| 10" classic subwoofer: 11 lbs (4.98 kg) | |
| Water And Dust Rating | IP65 |
| Peak Power (Watts) | 12" subwoofer: 1400 watts |
| 10" subwoofer: 600 watts | |
| Rms Power Rating (Watts) | 12" subwoofer: 700 watts |
| 10" subwoofer: 300 watts | |
| Sensitivity (1 Watt @ 1 Metre) | 86 dB |
| Magnetic Structure | 12" subwoofer: 114 oz |
| 10" subwoofer: 68 oz | |
| Frequency Response | 12" subwoofer: 20 Hz2 kHz |
| 10" subwoofer: 30 Hz2 kHz | |
| Nominal Impedance | 4 ohm |
| Recommended Amplifier Power (Watts Rms) | 12" subwoofer: 2001000 watts |
| 10" subwoofer: 50600 watts | |
| Led Lighting | yes, CRGBW (sports style with LED models only) |
| Led Supply Voltage | 10.816 VDC (sports style with LED models only) |
| Led Load Current @14.4 Vdc (Max) | 300 mA (sports style with LED models only) |
| Operating Temperature Range | 32122 degrees F (050 degrees C) |
| Voice Coil Diameter | 12" subwoofer: 4" |
| 10" subwoofer: 2" | |
| Cone Material | Polypropylene cone with rubber surround |
| Compass-Safe Distance | 12" subwoofer: 181" (460 cm) |
| 10" subwoofer: 205" (520 cm) | |
| Subwoofer Connection | Flying lead with water-resistant 2-way connector, 5.9" (150 mm) |
| Led Connection (Sports Style With Led Models Only) | Flying lead with water-resistant 6-way connector, 5.9" (150 mm) |
| Mounting Dimensions | |
| Mounting Diameter Clearance | 12" subwoofer: 12.05" (306 mm) |
| 10" subwoofer: 8.78" (223 mm) | |
| Mounting Depth Clearance | 12" subwoofer: 8.15" (207 mm) |
| 10" subwoofer: 5.24" (133 mm) | |
| Optimum Enclosure Recommendations | |
| Sealed Enclosure Volume (Fully Filled With Absorption Material) | 12" subwoofer: 2.12 cubic ft (60 L) |
| 10" subwoofer: 0.95 cubic ft (27 L) | |
| Ported (Vented) Enclosure Volume (Lined With Absorption Material) | 12" subwoofer: 8.83 cubic ft (250 L) |
| 10" subwoofer: 1.6 cubic ft (45 L) | |
| Port Diameter | 12" subwoofer: 4" (101.6 mm) |
| 10" subwoofer: 4.1" (104 mm) | |
| Port Length | 12" subwoofer: 5" (127 mm) |
| 10" subwoofer: 10.43" (265 mm) |
| Free Shipping | No |
|---|
