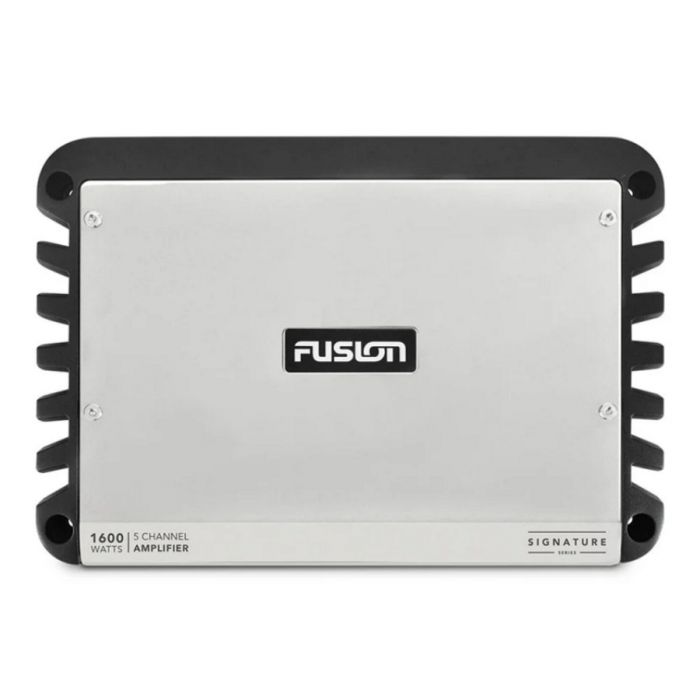

Garmin Signature Series Marine Amplifier - White/Black, Channel 5
R15,169.00
SKU
100196800
- Class-D amplifier design
- Connect up to two speakers
- Rigid aluminium alloy heat sink
Description
Take your music on the water with you when you buy the Garmin Signature Series Marine Amplifier - White/Black, Channel 5. The amplifier features a highly efficient Class-D design that provides lower battery drain with a higher output than Class-AB amplifiers.
With the amplifier you are able to connect up to two speakers per channel at 2 ohms or you can bridge two channels at 4 ohms for some increased power. When it comes to the build the amplifier features a polished stainless-steel control panel cover that conceals and helps protect all cables connections and settings controls while providing an attractive finish to complement any installation.
Features
- Class-D amplifier design
- Connect up to two speakers
- Conformal coated PCBs
- Rigid aluminium alloy heat sink
Specifications
| Dimensions | 11.81" x 8.27" x 1.97" / 300mm x 210mm x 50 mm |
| Amplifier Class | D |
| Peak Power | 1600 W |
| Total Rated Power Output - 4 Ohm | 80 W RMS x 4 + 250 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD |
| Total Rated Power Output - 2 Ohm | 130 W RMS x 4 + 330 W RMS x 1 @ 14.4 V input - 2 Ohm < 1% THD |
| Total Rated Power Output | 250 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD + 250 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD |
| Frequency Response | 10 Hz - 50 kHz (-3dB, dB @ 4 Ohm rated power) |
| Input Sensitivity | 0.3 V - 8 V RMS (user adjustable) |
| Input Impedance | 4k Ohm nominal |
| High-Pass/Low-Pass Full Range Filter | Yes |
| HP Variable Crossover Frequency | 32 Hz - 320 Hz |
| LP Variable Crossover Frequency | 32 Hz - 320 Hz |
| Bass Boost | 0 dB - 9 dB, user adjustable (zone 3 only) |
| Operating Voltage | 10.8 V - 16 V DC |
| Current Consumption (StandBy) | < 1 mA @ 14.4 V input |
| Current Consumption (Idle) | < 2.5 A @ 14.4 V input |
| Current Consumption (Max) | 80 A |
| Fuse Rating | 2 x 40 A ATC blade-type (SAE J1171 compliant) |
| Operating Temperature Range | 32 to 122 F / 0 to 50 C |
| Free Shipping | No |
|---|
