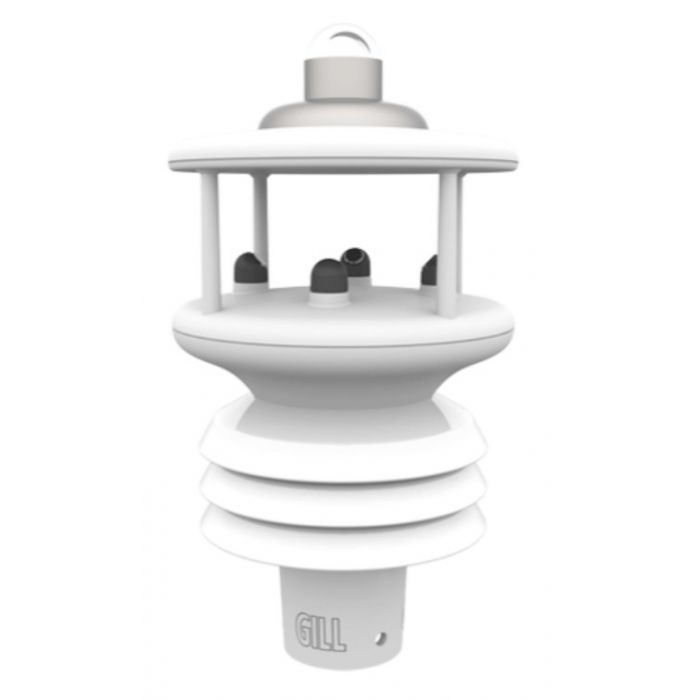

Gill MaxiMet GMX501 Compact Weather Station - White, GPS
R70,129.00
SKU
1957050160100
Free of charge software
Compact integrated design
Easy installation
Manufacturer's Website
Description
When looking for a budget friendly compact weather station the MaxiMet GMX501 Compact Weather Station is the only station you will ever need. The MaxiMet GMX501 Compact Weather Station has some amazing features like an integrated solar radiation sensor/pyrometer, and real time wind speed and direction measurements. The compact design of the MaxiMet GMX501 Compact Weather Station gives you a lightweight and robust solution to your at home weather reading, as well as an easy to install system that won't cost you an arm and a leg to do. One of the most exiting features about the MaxiMet GMX501 Compact Weather Station is the 180 degrees hemispherical field of view that also records sunshine hours. With the optional GPS there is nothing the MaxiMet GMX501 Compact Weather Station can't do
Features
- An integrated solar radiation sensor/pyranometer
- Wind Speed and direction measurements are provided via an ultra sonic sensor
- Free of charge software
- Compact integrated design
- Easy installation
- Quality Measurements
- Real Time Output
Specifications
| Wind Speed | |
| Range | 0.01 m/s to 60 m/s |
| Accuracy | (+/-) 3% TO 40 m/s, (+/-) 5% to 60% |
| Resolution | 0.01 m/s |
| Starting Threshold | 0.01 m/s |
| Sampling Rate | 1Hz |
| Units | m/s, km/hr, mph, hts, ft/min |
| Wind Direction | |
| Range | 0-359 degree |
| Accuracy | (+/-) 3 degree to 40 m/s, (+/-) 5 degree to 60 m/s |
| Resolution | 1 degree |
| Starting Threshold | 0.05 m/s |
| Sampling Rate | 1Hz |
| Units | Degrees |
| Temperature | |
| Range | -40 degree Celsius to + 70 degree Celsius |
| Resolution | 0.1 degree |
| Accuracy | (+/-) 0.3 degree Celsius at 20 degree Celsius |
| Sampling Rate | 1Hz |
| Units | Degree C, F, K |
| Humidity | |
| Range | 0-100% |
| Resolution | 1% |
| Accuracy | (+/-)2% at 20 degree Celsius (10% - 90% RH) |
| Sampling Rate | 1Hz |
| Units | %, RH, g/m cubed |
| Drew Point | |
| Range | -40 degree Celsius to +70 degree Celsius |
| Resolution | 0.1 degree |
| Accuracy | (+/-) 0.3 degree Celsius at 20 degree Celsius |
| Units | Degree C, F, K |
| Sampling Rate | 1Hz |
| Pressure | |
| Range | 300 to 1100 hpa |
| Resolution | 0.1 pha |
| Accuracy | (+/-)0.5 hpa at 25 degree Celsius |
| Sampling Rate | 1Hz |
| Units | hpa, bar, mmHg, inHg |
| Global Solar Radiation | |
| Wavelength Sensitivity | 300 to 3000 nm |
| Output Range | 0 to 1600 W/m squared |
| Resolution | 1 W/m squared |
| DIN Standard | ISO 9060 Second Class |
| Sampling Rate | 1Hz |
| Units | W/m squared |
| Outputs | |
| Output Range | 1s, 1 min, 1hr |
| Digital Comms Modes | Serial RS232, RS422, RS485, SDI-12, NMEA, MODBUS, ASCII |
| Analogue Outputs | Available via separate optional device |
| Power | |
| Power Supply | 5 to 30 Vdc |
| Power (Nominal) | 25 mA continuous high mode, 0.7 mA eco-power mode (1 hour polled) |
| Environmental Conditions | |
| IP Rating | 66 |
| Operational Temperature Range | -40 degree Celsius to +70 degree Celsius |
| EMC Standard | BS EN 61326 : 2013 FCC CFR47 parts 15,109 |
| CE Marking | Yes |
| RoHS Compliant | Yes |
| Weight | 0.8kg |
| Origin | UK |
| Free Shipping | No |
|---|
